ID
1399904
$ 43.22
1-2 weeks delivery time
Type:
- Zinc
- Aluminium
The Tecnoseal 03606 Series is a Quick propeller nut anode for BTQ185, corresponding to original part reference TQ18500 / BTQ185. It is available in Zinc 03606 and Aluminium 03606AL versions. Both variants share the same dimensions: a = 20 mm, h = 32 mm, Ø = 50 mm, Ø1 = 6 mm and Ø2 = 39 mm. The Zinc version weighs 0.26 kg (0.57 lbs), while the Aluminium version weighs 0.10 kg (0.22 lbs).
- Description
- Ask a Question
-

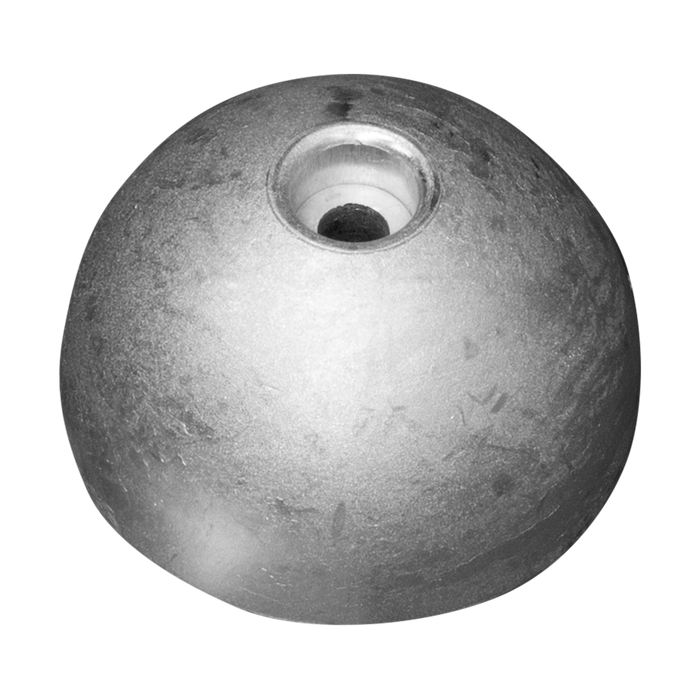

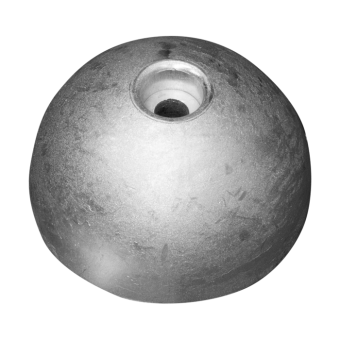

Tecnoseal 03606 Series Quick Propeller Nut Anode for BTQ185 – Zinc / Aluminium – TQ18500 / BTQ185
The Tecnoseal 03606 Series consists of Quick propeller nut anodes for BTQ185 applications. The corresponding original part reference is TQ18500 / BTQ185.
The series is available in Zinc and Aluminium versions. Both variants share the same dimensions: a = 20 mm, h = 32 mm, Ø = 50 mm, Ø1 = 6 mm and Ø2 = 39 mm. The weight differs according to the anode material.
Technical Specifications
Product Code Material Weight a h Ø Ø1 Ø2 03606 Zinc 0.26 kg (0.57 lbs) 20 mm (0.79") 32 mm (1.26") 50 mm (1.97") 6 mm (0.24") 39 mm (1.54") 03606AL Aluminium 0.10 kg (0.22 lbs) 20 mm (0.79") 32 mm (1.26") 50 mm (1.97") 6 mm (0.24") 39 mm (1.54")
Application and Reference
- Application: Quick BTQ185
- Original Part Reference: TQ18500 / BTQ185
- Available Materials: Zinc and Aluminium
-
