ID
1399913
$ 18.95
1-2 weeks delivery time
Type:
- Zinc
- Aluminium

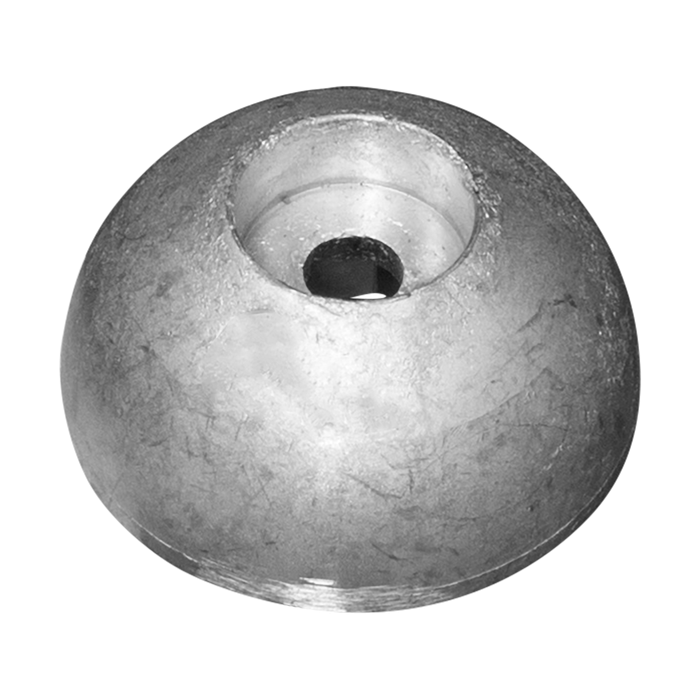

The Tecnoseal 03609 Series is a Quick propeller nut anode for BTQ110, corresponding to original part number MMANBTQ1100. It is available in Zinc 03609 and Aluminium 03609AL versions. Both variants share the same dimensions: c = 12.50 mm, a = 11 mm, h = 19 mm, Ø = 38 mm, Ø1 = 15 mm and Ø2 = 20 mm. The Zinc version weighs 0.09 kg (0.20 lbs), while the Aluminium version weighs 0.03 kg (0.07 lbs).
- Description
- Ask a Question
-

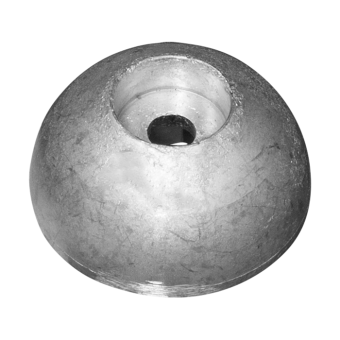

Tecnoseal 03609 Series Quick Propeller Nut Anode for BTQ110 – Zinc / Aluminium – MMANBTQ1100
The Tecnoseal 03609 Series consists of Quick propeller nut anodes for BTQ110 applications. The corresponding original part number is MMANBTQ1100.
The series is available in Zinc and Aluminium versions. Both variants share the same dimensions: c = 12.50 mm, a = 11 mm, h = 19 mm, Ø = 38 mm, Ø1 = 15 mm and Ø2 = 20 mm. The weight differs according to the anode material.
Technical Specifications
Product Code Material Weight c a h Ø Ø1 Ø2 03609 Zinc 0.09 kg (0.20 lbs) 12.50 mm (0.49") 11 mm (0.43") 19 mm (0.75") 38 mm (1.50") 15 mm (0.59") 20 mm (0.79") 03609AL Aluminium 0.03 kg (0.07 lbs) 12.50 mm (0.49") 11 mm (0.43") 19 mm (0.75") 38 mm (1.50") 15 mm (0.59") 20 mm (0.79")
Application and Reference
- Application: Quick BTQ110
- Original Part Number: MMANBTQ1100
- Available Materials: Zinc and Aluminium
-
