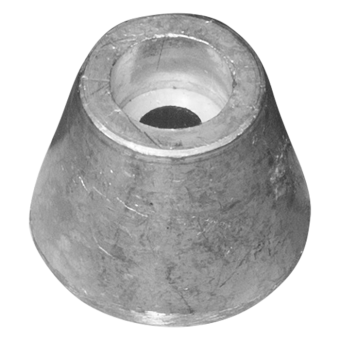

Tecnoseal Side-Power Thruster Propeller Nut Anode for 4/6 HP 3-Blade Prop – 61180

ID 1399919

$ 31.90

1-2 weeks delivery time

Type:

Zinc
Aluminium

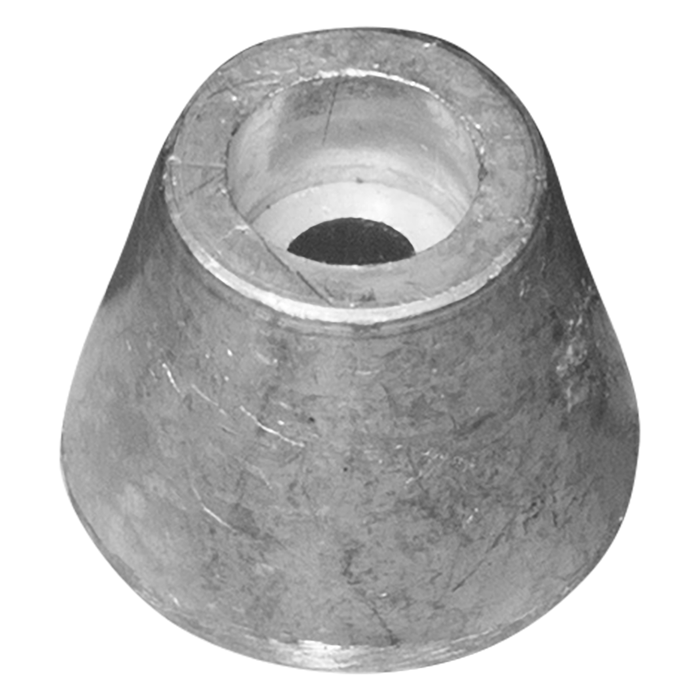

The Tecnoseal 01050 Series is a Side-Power / Sleipner propeller nut anode for 4/6 HP systems with 3-blade propeller, corresponding to original part number 61180 and also referenced as Tecnoseal 00730. It is available in Zinc 01050 and Aluminium 01050AL versions. Both variants share the same dimensions: 20 mm height, Ø26 mm overall diameter, Ø10 mm and Ø6.50 mm. The Zinc version weighs 0.04 kg (0.09 lbs), while the Aluminium version weighs 0.02 kg (0.04 lbs).

Description
Ask a Question

Tecnoseal 01050 Series Side-Power / Sleipner Propeller Nut Anode for 4/6 HP 3-Blade Prop – Zinc / Aluminium – 61180

The Tecnoseal 01050 Series consists of Side-Power / Sleipner propeller nut anodes for 4/6 HP systems with a 3-blade propeller. The corresponding original part number is 61180, and the catalogue also identifies this item as the same as Tecnoseal 00730.

The series is available in Zinc and Aluminium versions. Both variants share the same dimensions: 20 mm height, 26 mm overall diameter, Ø1 = 10 mm and Ø2 = 6.50 mm. The weight differs according to the anode material.

Technical Specifications

Product Code	Material	Weight	Height (h)	Overall Diameter (Ø)	Ø1	Ø2
01050 (Osculati 43.070.20)	Zinc	0.04 kg (0.09 lbs)	20 mm (0.79")	26 mm (1.02")	10 mm (0.39")	6.50 mm (0.26")
01050AL (Osculati 43.070.21)	Aluminium	0.02 kg (0.04 lbs)	20 mm (0.79")	26 mm (1.02")	10 mm (0.39")	6.50 mm (0.26")

Application and Reference

Application: Side-Power / Sleipner 4/6 HP
Propeller: 3-blade propeller
Original Part Number: 61180
Same as: Tecnoseal 00730
Available Materials: Zinc and Aluminium
