ID
1399916
$ 15.15
1-2 weeks delivery time
Type:
- Zinc
- Aluminium
The Tecnoseal 03610 Series is a Quick plate anode corresponding to original part number TQR6015, available in Zinc 03610 and Aluminium 03610AL versions. Both variants share the same dimensions: 60 mm length, 15 mm width, 7 mm height, 50 mm hole spacing (i), and 6.5 × 5.25 mm mounting holes. The Zinc version weighs 0.04 kg (0.09 lbs), while the Aluminium version weighs 0.02 kg (0.04 lbs).
- Description
- Ask a Question
-

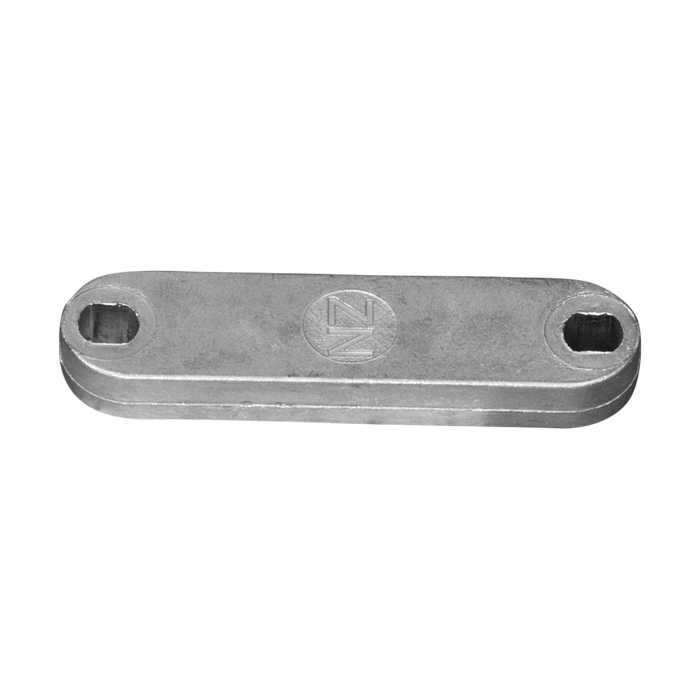

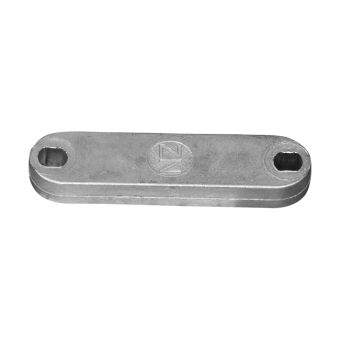

Tecnoseal 03610 Series Quick Plate Anode – Zinc / Aluminium – TQR6015
The Tecnoseal 03610 Series consists of Quick plate anodes corresponding to original part number TQR6015. The series is available in Zinc and Aluminium versions.
Both variants share the same dimensions: 60 mm length, 15 mm width, 7 mm height, 50 mm dimension (i), and 6.5 × 5.25 mm mounting holes. The weight differs according to the anode material.
Technical Specifications
Product Code Material Weight Length (l) Width (a) Height (h) Dimension (i) Mounting Hole (Ø) 03610 Zinc 0.04 kg (0.09 lbs) 60 mm (2.36") 15 mm (0.59") 7 mm (0.28") 50 mm (1.97") 6.5 × 5.25 mm (0.26" × 0.21") 03610AL Aluminium 0.02 kg (0.04 lbs) 60 mm (2.36") 15 mm (0.59") 7 mm (0.28") 50 mm (1.97") 6.5 × 5.25 mm (0.26" × 0.21")
Reference
- Brand/Application: Quick
- Original Part Number: TQR6015
- Available Materials: Zinc and Aluminium
-
