ID
1399901
$ 43.22
1-2 weeks delivery time
Type:
- Zinc
- Aluminium

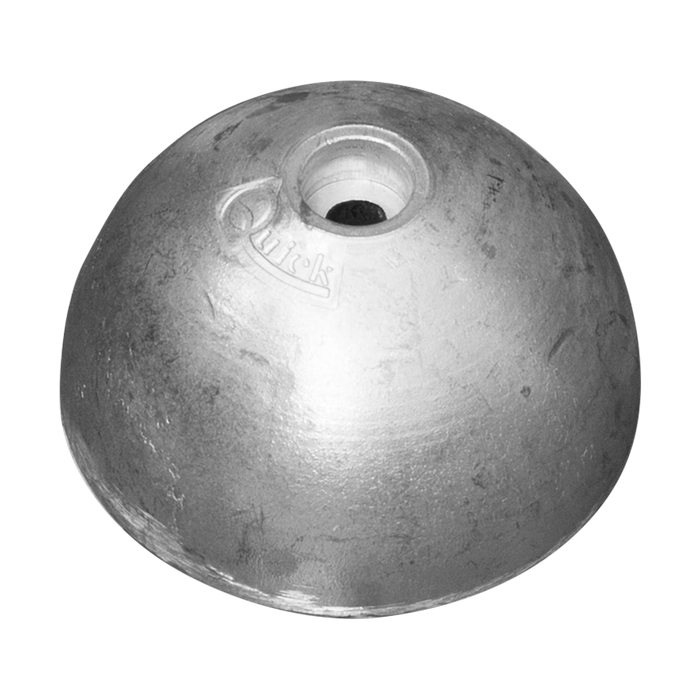

The Tecnoseal 03605 Series is a Quick propeller nut anode for BTQ140, corresponding to original part reference TQ14000 / BTQ140. It is available in Zinc 03605 and Aluminium 03605AL versions. Both variants share the same dimensions: a = 17 mm, h = 31 mm, Ø = 48 mm, Ø1 = 5 mm and Ø2 = 42 mm. The Zinc version weighs 0.23 kg (0.51 lbs), while the Aluminium version weighs 0.09 kg (0.20 lbs).
- Description
- Ask a Question
-

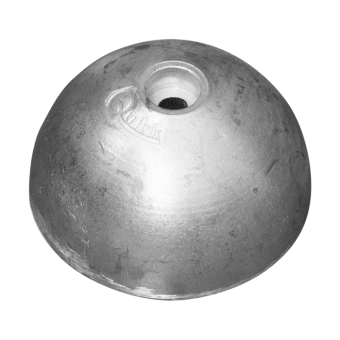

Tecnoseal 03605 Series Quick Propeller Nut Anode for BTQ140 – Zinc / Aluminium – TQ14000 / BTQ140
The Tecnoseal 03605 Series consists of Quick propeller nut anodes for BTQ140 applications. The corresponding original part reference is TQ14000 / BTQ140.
The series is available in Zinc and Aluminium versions. Both variants share the same dimensions: a = 17 mm, h = 31 mm, Ø = 48 mm, Ø1 = 5 mm and Ø2 = 42 mm. The weight differs according to the anode material.
Technical Specifications
Product Code Material Weight a h Ø Ø1 Ø2 03605 Zinc 0.23 kg (0.51 lbs) 17 mm (0.67") 31 mm (1.22") 48 mm (1.89") 5 mm (0.20") 42 mm (1.65") 03605AL Aluminium 0.09 kg (0.20 lbs) 17 mm (0.67") 31 mm (1.22") 48 mm (1.89") 5 mm (0.20") 42 mm (1.65")
Application and Reference
- Application: Quick BTQ140
- Original Part Reference: TQ14000 / BTQ140
- Available Materials: Zinc and Aluminium
-
