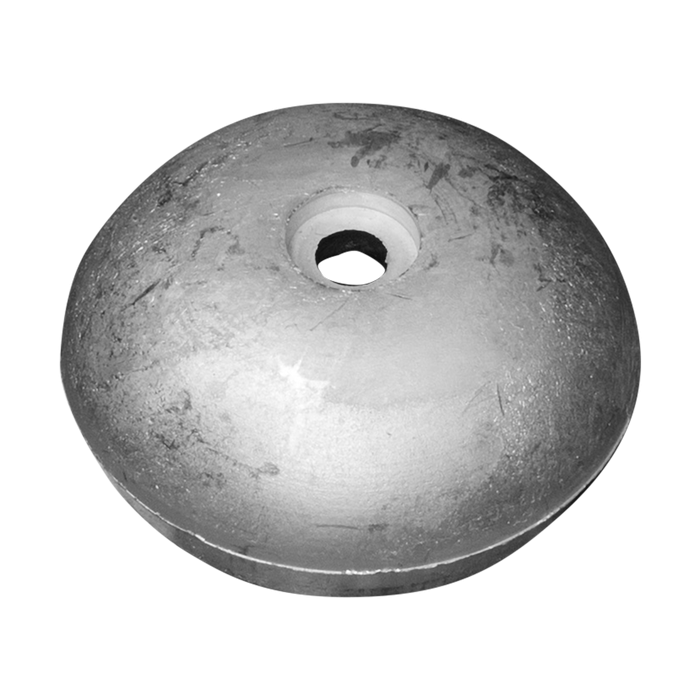

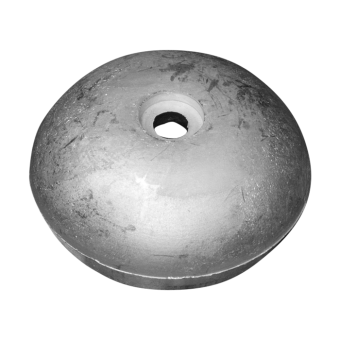

Tecnoseal Side-Power Thruster Propeller Nut Anode Ø45 × H20 mm – 71190 / 51180

ID 1399923

$ 33.53

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

The Tecnoseal 01052 Series is a Side-Power / Sleipner propeller nut anode for SP55S, SE60/185S, SP75T, SE80/185T, SP95T and SE100/185T, corresponding to original part numbers 71190 / 51180. It is available in Zinc 01052, Aluminium 01052AL and Magnesium 01052MG versions. All variants share the same dimensions: a = 19 mm, h = 20 mm, Ø = 45 mm, Ø1 = 6 mm and Ø2 = 40 mm. The weights are 0.12 kg (0.26 lbs) for Zinc, 0.05 kg (0.11 lbs) for Aluminium and 0.03 kg (0.07 lbs) for Magnesium.

Description
Ask a Question

Tecnoseal 01052 Series Side-Power / Sleipner Propeller Nut Anode Ø45 × H20 mm – Zinc / Aluminium / Magnesium – 71190 / 51180

The Tecnoseal 01052 Series consists of Side-Power / Sleipner propeller nut anodes for SP55S, SE60/185S, SP75T, SE80/185T, SP95T and SE100/185T applications. The corresponding original part numbers are 71190 / 51180.

The series is available in Zinc, Aluminium and Magnesium versions. All variants share the same dimensions: a = 19 mm, h = 20 mm, Ø = 45 mm, Ø1 = 6 mm and Ø2 = 40 mm. The weight differs according to the anode material.

Technical Specifications

Product Code	Material	Weight	a	h	Ø	Ø1	Ø2
01052 (Osculati 43.070.22)	Zinc	0.12 kg (0.26 lbs)	19 mm (0.75")	20 mm (0.79")	45 mm (1.77")	6 mm (0.24")	40 mm (1.57")
01052AL (Osculati 43.070.23)	Aluminium	0.05 kg (0.11 lbs)	19 mm (0.75")	20 mm (0.79")	45 mm (1.77")	6 mm (0.24")	40 mm (1.57")
01052MG	Magnesium	0.03 kg (0.07 lbs)	19 mm (0.75")	20 mm (0.79")	45 mm (1.77")	6 mm (0.24")	40 mm (1.57")

Application and Reference

Application: Side-Power / Sleipner SP55S, SE60/185S, SP75T, SE80/185T, SP95T, SE100/185T
Original Part Numbers: 71190 / 51180
Available Materials: Zinc, Aluminium, Magnesium
