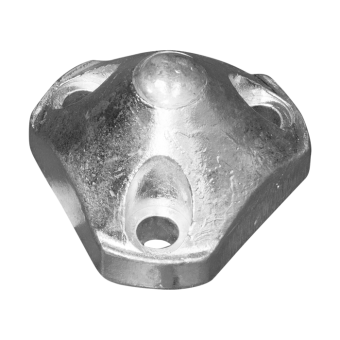

Tecnoseal Flexofold Propeller Nut Anode

Tecnoseal 01041 / 01041MG Flexofold Propeller Nut Anode – Zinc & Magnesium

The Tecnoseal 01041 and 01041MG are sacrificial propeller nut anodes designed for compatible Flex-O-Fold folding propeller assemblies. Available in zinc and magnesium, these components provide replaceable sacrificial corrosion protection for electrically connected underwater metallic propeller parts.

Unlike the larger dome-shaped Flex-O-Fold anodes, this version features a compact triangular mounting body with three fastening holes and a central opening. The design incorporates a 56 mm overall dimension (a), a 39 mm mounting dimension (i) and a total height of 10 mm. The central opening measures 14 mm (Ø), while the three mounting holes have a diameter of 9 mm (Ø1). An additional profile dimension (b) is specified as 8 mm.

Both versions share identical mounting dimensions and differ in sacrificial material and weight. The zinc version 01041 weighs 0.32 kg (0.71 lbs), while the magnesium version 01041MG weighs 0.08 kg (0.18 lbs).

Technical Specifications

Available Variants

• Tecnoseal 01041 – Zinc: Flex-O-Fold propeller nut anode with a weight of 0.32 kg. Dimensions: a = 56 mm, h = 10 mm, i = 39 mm.
• Tecnoseal 01041MG – Magnesium: Flex-O-Fold propeller nut anode with the same mounting dimensions and a weight of 0.08 kg.

Design and Mounting Configuration

The Tecnoseal 01041 series features a triangular body with rounded corners and three mounting holes arranged around a central fastening opening. Its compact design differs from the dome-shaped Flex-O-Fold anodes and is intended for the corresponding propeller mounting arrangement.

The manufacturer's drawing identifies dimension a as 56 mm, dimension i as 39 mm, overall height h as 10 mm and dimension b as 8 mm. The central opening has a diameter of 14 mm (Ø), while the three mounting holes measure 9 mm (Ø1).

Before ordering, compare the triangular mounting geometry, hole positions and dimensions against the existing anode to confirm compatibility with the specific Flex-O-Fold propeller assembly.

Material Selection and Corrosion Protection

The two available versions provide alternative sacrificial materials for different operating environments:

• Zinc: Commonly used for sacrificial corrosion protection in saltwater environments.
• Magnesium: Generally used for sacrificial corrosion protection in freshwater environments.

Both versions are designed to corrode preferentially, helping protect electrically connected underwater metallic propeller components against galvanic corrosion. Choose the appropriate material according to operating water conditions and the propeller manufacturer's recommendations.

Inspection and Replacement

Inspect the anode periodically for material consumption and replace it when significantly depleted. During installation, ensure correct positioning and suitable electrical contact with the metallic component requiring protection.

Scope of Supply

One Tecnoseal Flex-O-Fold propeller nut anode in the selected zinc or magnesium version.
