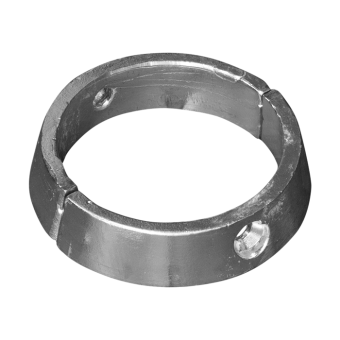

Tecnoseal VF2SDA Varifold VF70 Zinc Propeller Ring Anode for 2-Blade Saildrive

Tecnoseal 01036 / VF2SDA Varifold VF70 Zinc Propeller Ring Anode for 2-Blade Saildrive

The Tecnoseal 01036 is a zinc sacrificial propeller ring anode designed for Varifold VF70 2-blade folding propellers with Saildrive installations. It corresponds to original Varifold part number VF2SDA and provides a replacement sacrificial corrosion protection component for compatible propeller assemblies.

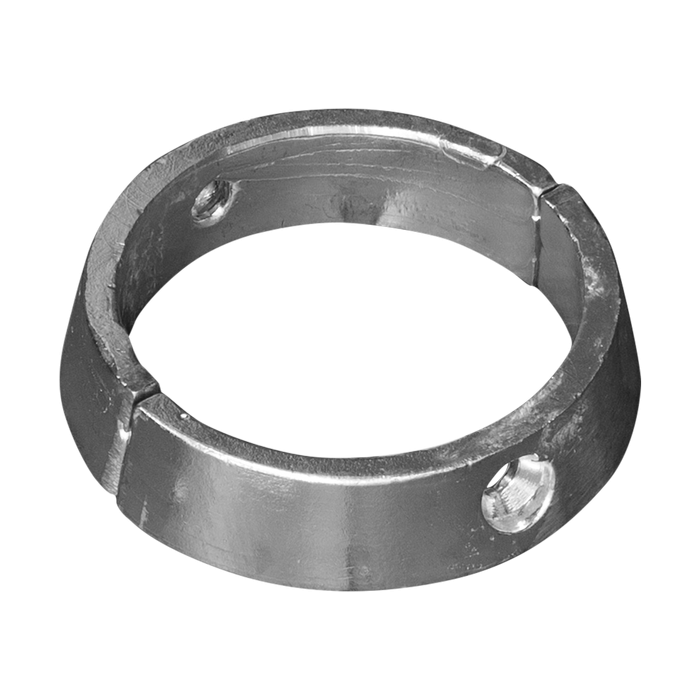

Unlike conventional dome-shaped propeller nut anodes, the Tecnoseal 01036 features a circular, split-ring construction with a central opening. Its ring-shaped design incorporates lateral fastening points, allowing the anode to be secured around the corresponding mounting section of the Varifold propeller assembly.

The anode measures 85 mm (3.35 in) in outside diameter, 67 mm (2.64 in) in internal diameter and 19 mm (0.75 in) in overall height. The manufacturer's technical drawing also specifies a fastening hole diameter of 7 mm (0.28 in). Manufactured from zinc, the anode weighs 0.22 kg (0.49 lbs).

Technical Specifications

Varifold VF70 Compatibility

The Tecnoseal 01036 is specified for Varifold VF70 folding propellers with two blades in Saildrive installations. It replaces the original Varifold anode reference VF2SDA.

The manufacturer's technical chart identifies the compatible propeller configuration and provides the relevant replacement dimensions. Before ordering, confirm the original part reference and compare the existing anode's mounting geometry with the technical drawing.

Design and Mounting Configuration

The anode has a circular ring-shaped body with a central opening and a split construction. The manufacturer's illustrations show fastening points positioned around the outer section of the ring, allowing the anode to be secured to the corresponding propeller assembly.

The external diameter is 85 mm, while the central opening measures 67 mm in diameter. The overall height is 19 mm, and the specified fastening hole diameter is 7 mm.

These measurements should be verified against the existing anode before replacement to ensure that the mounting geometry matches the intended Varifold VF70 configuration.

Galvanic Corrosion Protection

Manufactured from zinc, the Tecnoseal 01036 functions as a sacrificial corrosion protection component. When electrically connected to the underwater metallic parts requiring protection, zinc corrodes preferentially, helping reduce galvanic corrosion of the propeller assembly.

Zinc sacrificial anodes are commonly selected for saltwater environments. Material suitability should be confirmed according to the vessel's operating conditions and the propeller manufacturer's recommendations.

Inspection and Replacement

Inspect the propeller ring anode during routine folding propeller maintenance. Replace it when the sacrificial zinc material is significantly depleted, damaged or no longer securely mounted.

Before installation, inspect the fastening points and mounting surfaces, verify the internal opening diameter and ensure suitable electrical contact with the metallic component requiring protection.

Scope of Supply

1 × Tecnoseal 01036 Zinc Propeller Ring Anode.
