ID
1400298
$ 8.27
1-2 weeks delivery time
Shaft Diameter:
- 25
- 30
- 35
- 40
- 45
- 50
- 55
- 60
E. Polipodio stainless steel washers for Radice shaft anodes, available in eight sizes for models from Ø25 to Ø60 mm. Depending on the version, outside diameter A ranges from Ø38 to Ø90 mm, internal diameter B from Ø17 to Ø46 mm and K dimension from 5.8 to 16 mm. Polipodio references RA003, RA006, RA009, RA012, RA015, RA018, RA021 and RA024 correspond to Trem references L8115016, L8115020, L8115024, L8115025, L8115033, L8115037, L8115040 and L8115045 respectively. Select the required washer according to Radice model size and A, B and K dimensions.
- Description
- Ask a Question
-
E. Polipodio Stainless Steel Washers for Radice Shaft Anodes – Ø25–60 mm
The E. Polipodio stainless steel washers are designed for Radice shaft anodes and are available in eight dimensional configurations from Ø25 to Ø60 mm.
The range includes E. Polipodio references RA003, RA006, RA009, RA012, RA015, RA018, RA021 and RA024. Corresponding Trem catalogue references are L8115016, L8115020, L8115024, L8115025, L8115033, L8115037, L8115040 and L8115045.
Key Features
- Brand: E. Polipodio
- Product Type: Washer for Radice shaft anode
- Material: Stainless steel
- Model Range: Ø25–60 mm
- Outside Diameter A: Ø38–90 mm
- Internal Diameter B: Ø17–46 mm
- K Dimension: 5.8–16 mm
Available Models and Technical Specifications
E. Polipodio Reference Trem Reference Model A B K RA003 L8115016 Ø25 mm Ø38 mm Ø17 mm 5.8 mm RA006 L8115020 Ø30 mm Ø46 mm Ø20 mm 7.7 mm RA009 L8115024 Ø35 mm Ø51 mm Ø24 mm 9.6 mm RA012 L8115025 Ø40 mm Ø54 mm Ø25 mm 9.8 mm RA015 L8115033 Ø45 mm Ø66 mm Ø33 mm 12 mm RA018 L8115037 Ø50 mm Ø76 mm Ø36 mm 14 mm RA021 L8115040 Ø55 mm Ø81 mm Ø40 mm 15.5 mm RA024 L8115045 Ø60 mm Ø90 mm Ø46 mm 16 mm
E. Polipodio RA003 / Trem L8115016 – Ø25 mm
- Material: Stainless steel
- Model: Ø25 mm
- A: Ø38 mm
- B: Ø17 mm
- K: 5.8 mm
E. Polipodio RA006 / Trem L8115020 – Ø30 mm
- Material: Stainless steel
- Model: Ø30 mm
- A: Ø46 mm
- B: Ø20 mm
- K: 7.7 mm
E. Polipodio RA009 / Trem L8115024 – Ø35 mm
- Material: Stainless steel
- Model: Ø35 mm
- A: Ø51 mm
- B: Ø24 mm
- K: 9.6 mm
E. Polipodio RA012 / Trem L8115025 – Ø40 mm
- Material: Stainless steel
- Model: Ø40 mm
- A: Ø54 mm
- B: Ø25 mm
- K: 9.8 mm
E. Polipodio RA015 / Trem L8115033 – Ø45 mm
- Material: Stainless steel
- Model: Ø45 mm
- A: Ø66 mm
- B: Ø33 mm
- K: 12 mm
E. Polipodio RA018 / Trem L8115037 – Ø50 mm
- Material: Stainless steel
- Model: Ø50 mm
- A: Ø76 mm
- B: Ø36 mm
- K: 14 mm
E. Polipodio RA021 / Trem L8115040 – Ø55 mm
- Material: Stainless steel
- Model: Ø55 mm
- A: Ø81 mm
- B: Ø40 mm
- K: 15.5 mm
E. Polipodio RA024 / Trem L8115045 – Ø60 mm
- Material: Stainless steel
- Model: Ø60 mm
- A: Ø90 mm
- B: Ø46 mm
- K: 16 mm

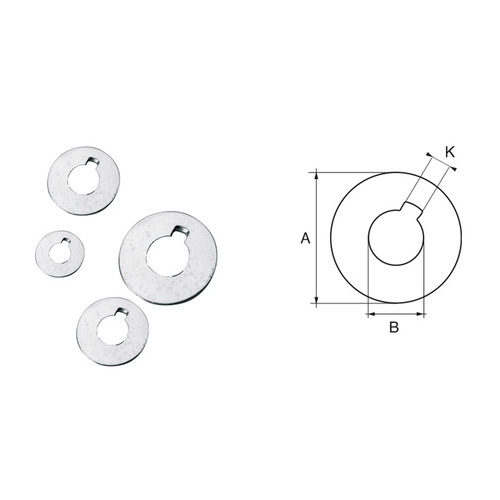

Dimensions for Model Selection
- Model: Radice shaft anode size
- A: Washer outside diameter
- B: Internal diameter
- K: Washer thickness / dimension shown in the catalogue drawing
For replacement selection, compare the Radice model size and A, B and K dimensions with the existing washer.
-
