Shaft Diameter:
- 25
- 30
- 35
- 40
- 45
- 50
- 55
- 60
E. Polipodio Radice conical shaft nut zinc anodes for shaft diameters from Ø25 to Ø60 mm. The range includes eight versions with overall diameter A from 32 to 82 mm, internal dimension B from 16 to 46 mm, lower internal dimension C from 25 to 71 mm and overall height H from 39 to 95 mm. All variants are manufactured in zinc and are selected primarily according to the propeller shaft diameter. Trem references L8110225–L8110260 correspond to E. Polipodio articles RA002, RA005, RA008, RA011, RA014, RA017, RA020 and RA023.
- Description
- Ask a Question
-
E. Polipodio Radice Conical Shaft Nut Zinc Anodes – Shaft Ø25–60 mm
The E. Polipodio Radice Conical Shaft Nut Anodes are zinc anodes available for propeller shaft diameters from Ø25 to Ø60 mm. The range includes eight dimensional configurations corresponding to E. Polipodio references RA002 through RA023 and Trem catalogue references L8110225 through L8110260.
The variants are selected primarily according to the required shaft diameter. Depending on the model, overall diameter A ranges from 32 to 82 mm, dimension B from 16 to 46 mm, dimension C from 25 to 71 mm and overall height H from 39 to 95 mm.
Key Features
- Brand: E. Polipodio
- Catalogue: Trem
- Type: Radice conical shaft nut anode
- Material: Zinc (ZN)
- Shaft Diameter Range: Ø25–60 mm
- Overall Diameter A: 32–82 mm
- Dimension B: 16–46 mm
- Dimension C: 25–71 mm
- Height H: 39–95 mm
Available Models and Technical Specifications
E. Polipodio Reference Trem Reference Shaft Ø A B C H Material RA002 L8110225 25 mm 32 mm 16 mm 25 mm 39 mm Zinc RA005 L8110230 30 mm 44 mm 21 mm 32 mm 52 mm Zinc RA008 L8110235 35 mm 44 mm 24 mm 37 mm 52 mm Zinc RA011 L8110240 40 mm 49 mm 27 mm 42 mm 65 mm Zinc RA014 L8110245 45 mm 59 mm 31 mm 48 mm 74 mm Zinc RA017 L8110250 50 mm 73 mm 39 mm 57 mm 84 mm Zinc RA020 L8110255 55 mm 73 mm 42 mm 65 mm 85 mm Zinc RA023 L8110260 60 mm 82 mm 46 mm 71 mm 95 mm Zinc
E. Polipodio RA002 / Trem L8110225 – Shaft Ø25 mm
- Shaft Diameter: Ø25 mm
- A: 32 mm
- B: 16 mm
- C: 25 mm
- H: 39 mm
- Material: Zinc
- EAN: 8024827645901
E. Polipodio RA005 / Trem L8110230 – Shaft Ø30 mm
- Shaft Diameter: Ø30 mm
- A: 44 mm
- B: 21 mm
- C: 32 mm
- H: 52 mm
- Material: Zinc
- EAN: 8024827645918
E. Polipodio RA008 / Trem L8110235 – Shaft Ø35 mm
- Shaft Diameter: Ø35 mm
- A: 44 mm
- B: 24 mm
- C: 37 mm
- H: 52 mm
- Material: Zinc
- EAN: 8024827656969
E. Polipodio RA011 / Trem L8110240 – Shaft Ø40 mm
- Shaft Diameter: Ø40 mm
- A: 49 mm
- B: 27 mm
- C: 42 mm
- H: 65 mm
- Material: Zinc
- EAN: 8024827656976
E. Polipodio RA014 / Trem L8110245 – Shaft Ø45 mm
- Shaft Diameter: Ø45 mm
- A: 59 mm
- B: 31 mm
- C: 48 mm
- H: 74 mm
- Material: Zinc
- EAN: 8024827656983
E. Polipodio RA017 / Trem L8110250 – Shaft Ø50 mm
- Shaft Diameter: Ø50 mm
- A: 73 mm
- B: 39 mm
- C: 57 mm
- H: 84 mm
- Material: Zinc
- EAN: 8024827656990
E. Polipodio RA020 / Trem L8110255 – Shaft Ø55 mm
- Shaft Diameter: Ø55 mm
- A: 73 mm
- B: 42 mm
- C: 65 mm
- H: 85 mm
- Material: Zinc
- EAN: 8024827657003
E. Polipodio RA023 / Trem L8110260 – Shaft Ø60 mm
- Shaft Diameter: Ø60 mm
- A: 82 mm
- B: 46 mm
- C: 71 mm
- H: 95 mm
- Material: Zinc
- EAN: 8024827657010

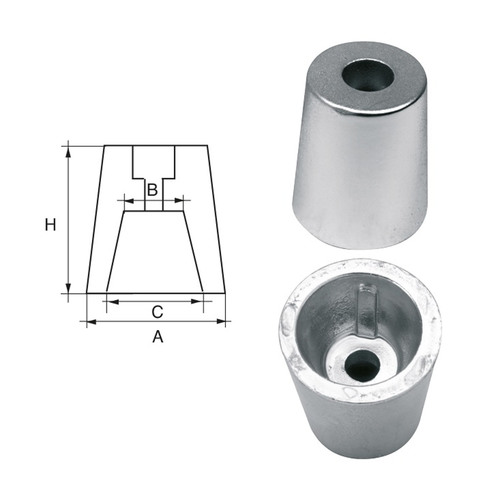

Dimensions for Model Selection
- Shaft Ø: Nominal propeller shaft diameter
- A: Overall outside diameter
- B: Upper internal dimension
- C: Lower internal dimension
- H: Overall height
Select the required version primarily by shaft diameter and verify dimensions A, B, C and H against the existing installation.
-
