ID
1400421
$ 92.60
1-2 weeks delivery time
-
+
E. Polipodio zinc anode for rudders and flaps, model FX-3V, measuring 250 x 65 x 28 mm and weighing 2.40 kg. The anode features two mounting points with 140 mm centre-to-centre spacing, with the catalogue drawing specifying Ø11x15 and Ø11 mounting-hole dimensions. Manufactured from zinc (ZN) for rudder and flap installations.
- Description
- Ask a Question
-
E. Polipodio NC022 Zinc Anode for Rudders & Flaps – 250x65x28 mm, 2.4 kg
The E. Polipodio NC022 is a zinc anode designed for rudder and flap applications. It is identified as model FX-3V and is cross-referenced in the Trem catalogue as L8120414.

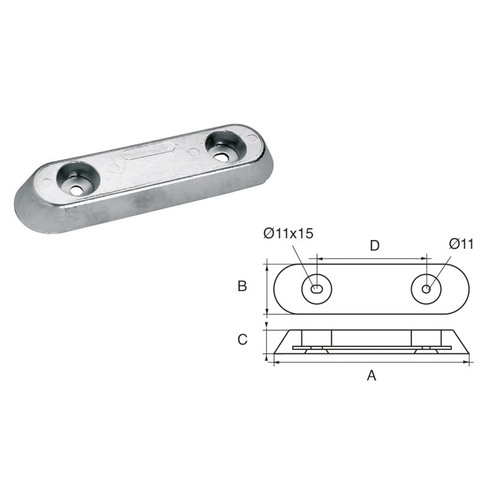

The anode measures 250 x 65 x 28 mm and weighs 2.40 kg. It features two mounting points positioned 140 mm centre-to-centre. The catalogue drawing specifies mounting-hole dimensions of Ø11x15 and Ø11.
Technical Specifications
- Brand: E. Polipodio
- E. Polipodio Reference: NC022
- Trem Reference: L8120414
- Model: FX-3V
- Application: Rudders & flaps
- Material: Zinc (ZN)
- Length A: 250 mm
- Width B: 65 mm
- Height C: 28 mm
- Hole Centre Spacing D: 140 mm
- Mounting Points: 2
- Mounting-Hole Details: Ø11x15 / Ø11
- Weight: 2.40 kg / 2400 g
- EAN: 8024827645253
Dimensions for Selection
- Overall Size: 250 x 65 x 28 mm
- Hole Spacing: 140 mm centre-to-centre
- Mounting-Hole Details: Ø11x15 / Ø11
- Weight: 2.40 kg
For replacement selection, compare the overall dimensions, mounting-hole configuration, 140 mm centre spacing and weight with the existing anode.
-
