ID
1400420
$ 31.83
1-2 weeks delivery time
-
+
E. Polipodio zinc anode for rudders and flaps, model FX-2V, with an overall size of 150 x 60 x 25 mm and a weight of 1.00 kg. The anode features two mounting points positioned 80 mm centre-to-centre, with the catalogue drawing specifying Ø11x15 and Ø11 mounting-hole dimensions. Manufactured from zinc (ZN) for rudder and flap installations.
- Description
- Ask a Question
-
E. Polipodio NC021 Zinc Anode for Rudders & Flaps – 150x60x25 mm, 1.0 kg
The E. Polipodio NC021 is a zinc anode designed for rudder and flap applications. It is identified as model FX-2V and is cross-referenced in the Trem catalogue as L8120208.

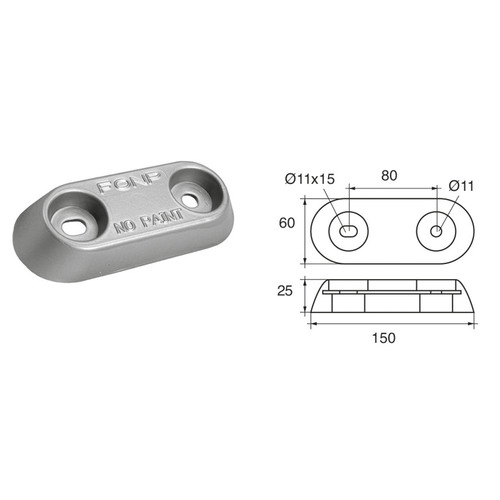

The anode measures 150 x 60 x 25 mm and weighs 1.00 kg. It features two mounting points with 80 mm centre-to-centre spacing. The catalogue drawing specifies the mounting-hole dimensions as Ø11x15 and Ø11.
Technical Specifications
- Brand: E. Polipodio
- E. Polipodio Reference: NC021
- Trem Reference: L8120208
- Model: FX-2V
- Application: Rudders & flaps
- Material: Zinc (ZN)
- Length: 150 mm
- Width: 60 mm
- Height: 25 mm
- Weight: 1.00 kg / 1000 g
- Mounting Points: 2
- Hole Centre Spacing: 80 mm
- Mounting-Hole Details: Ø11x15 / Ø11
- EAN: 8024827644539
Dimensions for Selection
- Overall Size: 150 x 60 x 25 mm
- Hole Spacing: 80 mm centre-to-centre
- Mounting-Hole Details: Ø11x15 / Ø11
- Weight: 1.00 kg
For replacement selection, compare the overall dimensions, mounting-hole configuration, 80 mm centre spacing and weight with the existing anode.
-
