ID
1400422
$ 17.07
1-2 weeks delivery time
-
+
E. Polipodio zinc anode for rudders and flaps, model FD-1, measuring 150 x 45 x 20 mm. The anode features two Ø7 mm mounting holes positioned 52 mm centre-to-centre. Manufactured from zinc (ZN) and cross-referenced in the Trem catalogue as L8120205.
- Description
- Ask a Question
-
E. Polipodio NC031 Zinc Anode for Rudders & Flaps – 150x45x20 mm
The E. Polipodio NC031 is a zinc anode designed for rudder and flap applications. It is identified as model FD-1 and is cross-referenced in the Trem catalogue as L8120205.

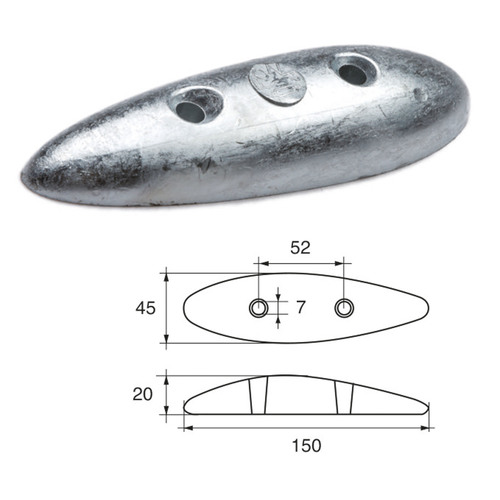

The anode measures 150 x 45 x 20 mm and features two mounting holes. According to the catalogue drawing, the holes are Ø7 mm with 52 mm centre-to-centre spacing.
Technical Specifications
- Brand: E. Polipodio
- E. Polipodio Reference: NC031
- Trem Reference: L8120205
- Model: FD-1
- Application: Rudders & flaps
- Material: Zinc (ZN)
- Length: 150 mm
- Width: 45 mm
- Height: 20 mm
- Mounting Holes: 2
- Hole Diameter: Ø7 mm
- Hole Centre Spacing: 52 mm
- EAN: 8024827644508
Dimensions for Selection
- Overall Size: 150 x 45 x 20 mm
- Hole Diameter: Ø7 mm
- Hole Spacing: 52 mm centre-to-centre
For replacement selection, compare the overall dimensions, mounting-hole diameter and 52 mm centre spacing with the existing anode.
-
