Quick Olympic Anchor Swivel

ID 1348286

$ 568.13

1-2 weeks delivery time

Type:

Satin
Polished

Diameter, mm:

8-10
10-22
13-34
14-60

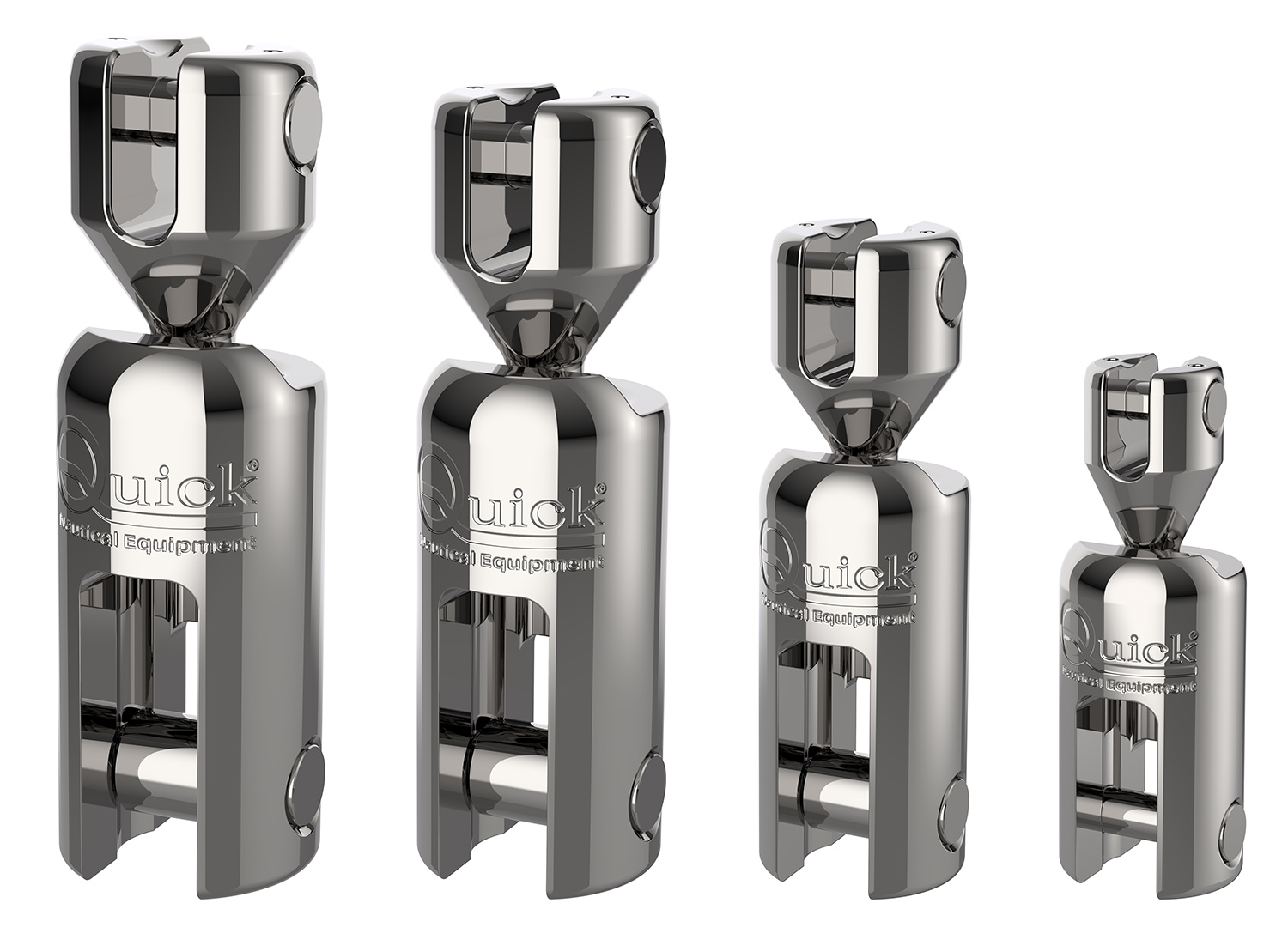

The Quick Olympic Anchor Swivel is manufactured from AISI 630 and features a patented automatic reversal system that helps the anchor rotate and settle correctly on the bow roller. Available in satin (matt) or polished finish, the range covers four sizes: 08-10 for Olympic anchors 7 & 10 kg with 6 mm and 8 mm DIN766 chain; 10-22 for 16 & 20 kg anchors with 8 mm and 10 mm DIN766 chain and 12 mm ISO chain; 13-34 for 26 & 34 kg anchors with 10 mm and 13 mm DIN766 chain and 10 mm and 12 mm ISO chain; and 14-60 for 45 & 60 kg anchors with 13 mm and 14 mm DIN766 chain and 14 mm ISO chain.

Description
Ask a Question

Quick Olympic Anchor Swivel – Patented Automatic Reversal System, AISI 630, Satin or Polished Finish

The Quick Olympic Anchor Swivel is designed to support correct anchor positioning on the bow roller using a patented automatic reversal system. This function is achieved through the combination of the eyelet shape welded to the end of the shaft and the round elements of the swivel, allowing the anchor to rotate and settle on the correct side.

Key Features

Patented automatic reversal system for correct anchor placement on the bow roller
Material: AISI 630
Finish options: Satin (Matt) or Polished

Available Sizes and Compatibility

Swivel Size	Compatible Olympic Anchor Weight	Compatible Chain Sizes	Standards	Finish Options
08-10	7 kg, 10 kg	6 mm, 8 mm	DIN766	Satin (Matt) / Polished
10-22	16 kg, 20 kg	8 mm, 10 mm / 12 mm	DIN766 / ISO	Satin (Matt) / Polished
13-34	26 kg, 34 kg	10 mm, 13 mm / 10 mm, 12 mm	DIN766 / ISO	Satin (Matt) / Polished
14-60	45 kg, 60 kg	13 mm, 14 mm / 14 mm	DIN766 / ISO	Satin (Matt) / Polished

Finish Options

Satin (Matt): 08-10, 10-22, 13-34, 14-60
Polished: 08-10, 10-22, 13-34, 14-60
