ID
1378834
$ 101.45
1-2 weeks delivery time
Diameter, mm:
- 6-8
- 10-13
The Euromarine Double Chain & Anchor Connector is manufactured from A4 stainless steel and designed to provide articulated movement between the anchor and chain. Its double-joint construction eliminates rotation between the two elements, improving anchor alignment and reducing twisting loads. Available for 6-8 mm and 10-13 mm chain sizes, with lengths of 134 mm and 154 mm and breaking loads up to 4900 kg.
- Description
- Ask a Question
-

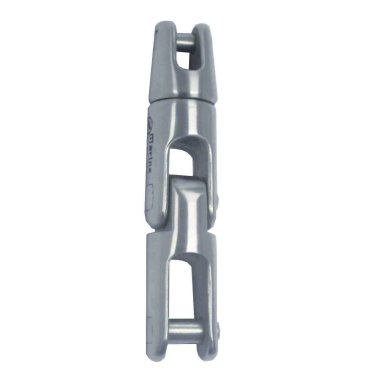

Euromarine Double Chain & Anchor Connector A4 Stainless Steel – for 6-8 mm and 10-13 mm Chain
The Euromarine Double Chain & Anchor Connector is an A4 stainless steel articulated connector designed to create a flexible and secure connection between the anchor and chain.
The double-joint design allows perfect articulation between both elements and helps eliminate rotation phenomena between the anchor and chain. This improves alignment during anchoring operations and reduces twisting forces within the anchoring system.
Key Features
- A4 stainless steel construction
- Double articulated chain-to-anchor connector
- Allows free articulation between anchor and chain
- Reduces rotation between connected components
- Suitable for marine anchoring systems
- High breaking strength
Available Variants
SKU Chain Size D A B Length (L) Breaking Load AITAD06084 6-8 mm 28 mm 9 mm 16 mm 134 mm 3290 kg SMATTAD1012P 10-13 mm 38 mm 13 mm 22 mm 154 mm 4900 kg
Technical Specifications
Brand Euromarine Product Type Double Chain & Anchor Connector Material A4 Stainless Steel Compatible Chain Sizes 6-8 mm / 10-13 mm Length Range 134-154 mm Breaking Load Range 3290-4900 kg
Applications
- Anchor-to-chain connections
- Marine anchoring systems
- Mooring installations
- Applications requiring articulation between anchor and chain
- Reducing chain twisting during anchoring operations
-
