ID
1385000
$ 9.43
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
The Viadana Stainless Steel Swivel Connectors are compact marine swivel fittings designed to provide a strong articulated connection while allowing free rotation under load. Manufactured from corrosion-resistant stainless steel, these connectors help prevent twisting of lines and hardware, making them ideal for sailing, rigging, deck equipment, and general marine applications. The range includes 5 mm, 6 mm, and 8 mm pin sizes with break loads up to 1,800 kg.
- Description
- Ask a Question
-

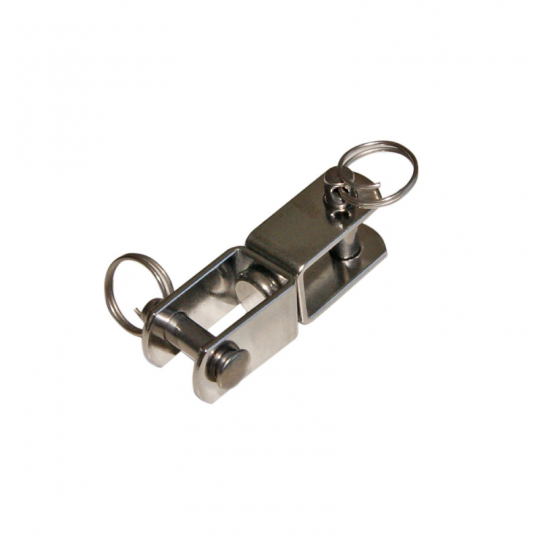

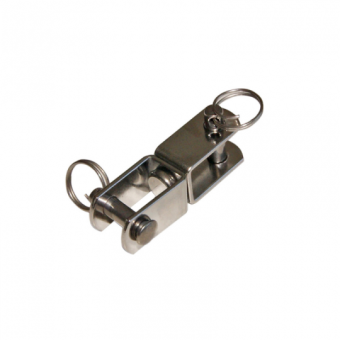

Viadana Stainless Steel Swivel Connectors
The Viadana Stainless Steel Swivel Connectors are precision-engineered marine fittings designed to provide a secure articulated connection while allowing smooth rotation. Their swivel design minimizes twisting forces on ropes, fittings, and rigging hardware, improving both equipment performance and service life.
Manufactured from high-quality stainless steel, these connectors offer excellent corrosion resistance and long-term durability in marine environments. They are suitable for sailing yachts, dinghies, deck hardware, rigging systems, lifting applications, and other installations requiring a compact rotating connector.
Key Features
- Original Viadana marine hardware
- Stainless steel construction
- Integrated swivel design
- Smooth 360° rotation
- Excellent corrosion resistance
- Compact and high-strength construction
- Suitable for marine and industrial applications
Available Variants
FNI Article Viadana No. Pin Ø Wheelbase Width Break Load 7878705 5401 5 mm 34 mm 11 mm 480 kg 7878706 5402 6 mm 36 mm 11 mm 1350 kg 7878707 5415 8 mm 42 mm 14 mm 1800 kg
Technical Specifications
Brand Viadana Product Type Swivel Connector Material Stainless Steel Pin Sizes 5 mm, 6 mm, 8 mm Wheelbase 34–42 mm Width 11–14 mm Break Load 480–1800 kg Applications Rigging, sailing hardware, deck fittings, marine equipment, lifting systems
Applications
- Standing and running rigging
- Blocks and tackle systems
- Deck hardware connections
- Marine lifting equipment
- Sailing yachts and dinghies
- General-purpose rotating connections
-
