ID
1378801
$ 4.42
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
- 10
- 13
- 16
Item:
- 1 pcs
- 10 pcs
The Euromarine Eye-to-Eye Swivel is manufactured from A4 stainless steel and designed for anchoring, mooring, and general marine rigging applications. Available in diameters from 5 mm to 16 mm, it features an eye-to-eye swivel design that helps reduce line twisting while maintaining reliable strength. Depending on size, breaking loads range from 790 kg to 8130 kg, with overall lengths from 55 mm to 176 mm.
- Description
- Ask a Question
-

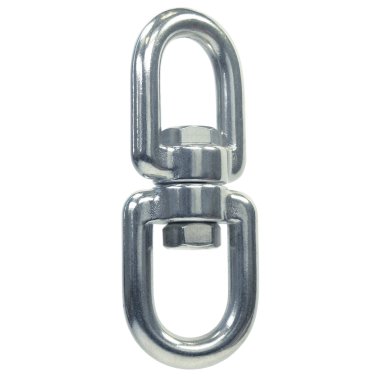

Euromarine A4 Stainless Steel Eye-to-Eye Swivel – Ø5-16 mm
The Euromarine Eye-to-Eye Swivel is manufactured from corrosion-resistant A4 stainless steel and is designed for marine anchoring, mooring, and rigging systems. The swivel construction allows connected components to rotate freely, helping to reduce twisting forces in ropes, chains, and other rigging elements.
Available in multiple diameters from 5 mm to 16 mm, this swivel offers a wide range of breaking loads to suit different marine applications while maintaining excellent resistance to corrosion in harsh environments.
Key Features
- A4 stainless steel construction
- Eye-to-eye swivel design
- Helps reduce rope and chain twisting
- Suitable for anchoring and mooring applications
- Corrosion-resistant marine-grade construction
- Available in multiple sizes
Applications
- Mooring systems
- Anchoring installations
- Marine rigging
- Rope and chain connections
- General deck hardware applications
Available Variants
Diameter A B Length (L) Breaking Load 5 mm 12 mm 12 mm 55 mm 790 kg 6 mm 15 mm 15 mm 66 mm 1130 kg 8 mm 20 mm 20 mm 88 mm 1200 kg / 2000 kg 10 mm 25 mm 25 mm 110 mm 3170 kg 13 mm 32 mm 32 mm 143 mm 4570 kg 16 mm 40 mm 40 mm 176 mm 8130 kg
Technical Specifications
Material A4 Stainless Steel Design Eye-to-Eye Swivel Diameter Range 5 mm – 16 mm Length Range 55 mm – 176 mm Breaking Load Range 790 kg – 8130 kg -
