ID
1384151
$ 3.77
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
- 10
- 13
- 16
The AISI 316 Stainless Steel Jaw-to-Jaw Swivels with Embedded Pin are designed for secure rotating connections in marine rigging, mooring, lifting, and industrial applications. The integrated embedded pin provides a clean, tamper-resistant connection while allowing smooth 360° rotation to reduce twisting loads. Manufactured from marine-grade AISI 316 stainless steel, these swivels offer outstanding corrosion resistance for long-term use in harsh marine environments. Available in Ø5 mm to Ø16 mm sizes.
- Description
- Ask a Question
-

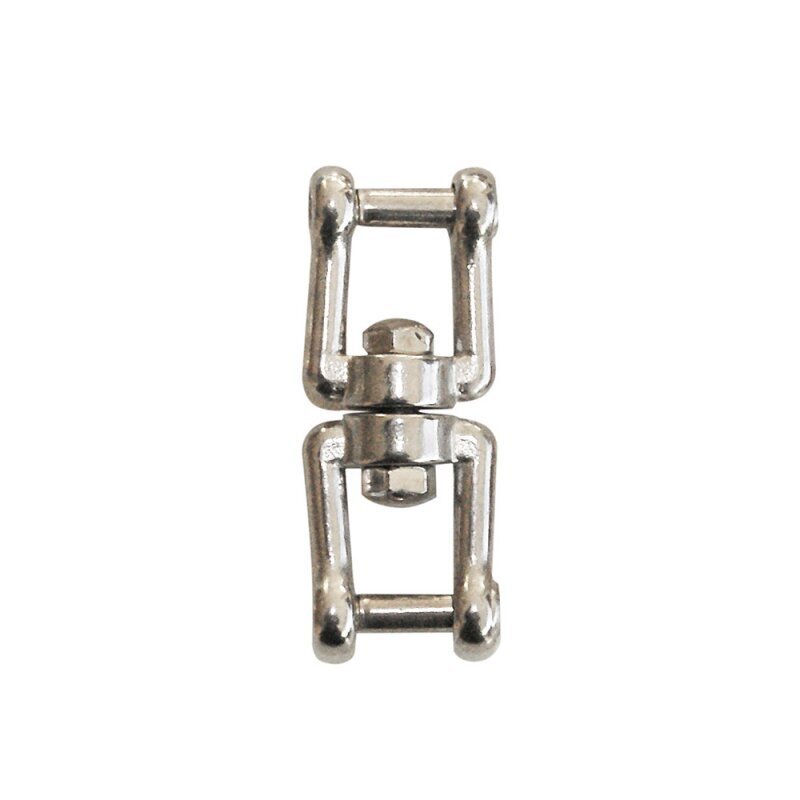

AISI 316 Stainless Steel Jaw-to-Jaw Swivels with Embedded Pin
The AISI 316 Stainless Steel Jaw-to-Jaw Swivels with Embedded Pin are engineered for applications requiring secure articulated connections and smooth rotation under load. The integrated embedded pin design provides a streamlined construction while maintaining excellent mechanical strength and long-term reliability.
Manufactured from premium marine-grade AISI 316 stainless steel, these swivels deliver exceptional corrosion resistance in saltwater and harsh outdoor environments. Their rotating body minimizes twisting forces on ropes, chains, cables, and rigging, helping to extend the service life of connected equipment.
Key Features
- Marine-grade AISI 316 stainless steel construction
- Jaw-to-jaw swivel with integrated embedded pins
- Smooth 360° rotation
- Helps prevent twisting of ropes and chains
- Excellent corrosion resistance for marine environments
- Robust construction for professional applications
- Available in six sizes
Available Variants
Article Diameter Length (A) Jaw Width (B) Jaw Opening (C) Pack 0404955 Ø5 mm 60 mm 11.5 mm 10 mm 10 pcs 0404956 Ø6 mm 64 mm 12 mm 12 mm 10 pcs 0404958 Ø8 mm 89 mm 16 mm 16 mm 10 pcs 0404960 Ø10 mm 112 mm 22 mm 20 mm 5 pcs 0404963 Ø13 mm 154 mm 28 mm 26 mm 1 pc 0404966 Ø16 mm 185 mm 37 mm 32 mm 1 pc
Technical Specifications
Product Type Jaw-to-Jaw Swivel with Embedded Pin Material AISI 316 Stainless Steel Connection Type Jaw / Jaw Pin Type Embedded Pin Rotation 360° free rotation Available Diameters Ø5 mm, Ø6 mm, Ø8 mm, Ø10 mm, Ø13 mm, Ø16 mm Applications Marine rigging, mooring systems, lifting equipment, rope and chain assemblies Environment Freshwater and saltwater use
Applications
- Sailing and yacht rigging
- Anchor and mooring systems
- Marine hardware installations
- Lifting and hoisting equipment
- Chain and rope assemblies
- Industrial rotating connections
-
