ID
1384144
$ 3.34
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
- 10
- 13
- 16
The AISI 316 Stainless Steel Jaw-to-Jaw Swivels are designed to provide smooth rotation between two shackle-style jaw connections, reducing twisting forces in rigging, mooring, and lifting systems. Manufactured from marine-grade AISI 316 stainless steel, these swivels offer excellent corrosion resistance and dependable performance in demanding marine environments. Available in Ø5 mm, Ø6 mm, Ø8 mm, Ø10 mm, Ø13 mm, and Ø16 mm sizes to suit a wide range of applications.
- Description
- Ask a Question
-

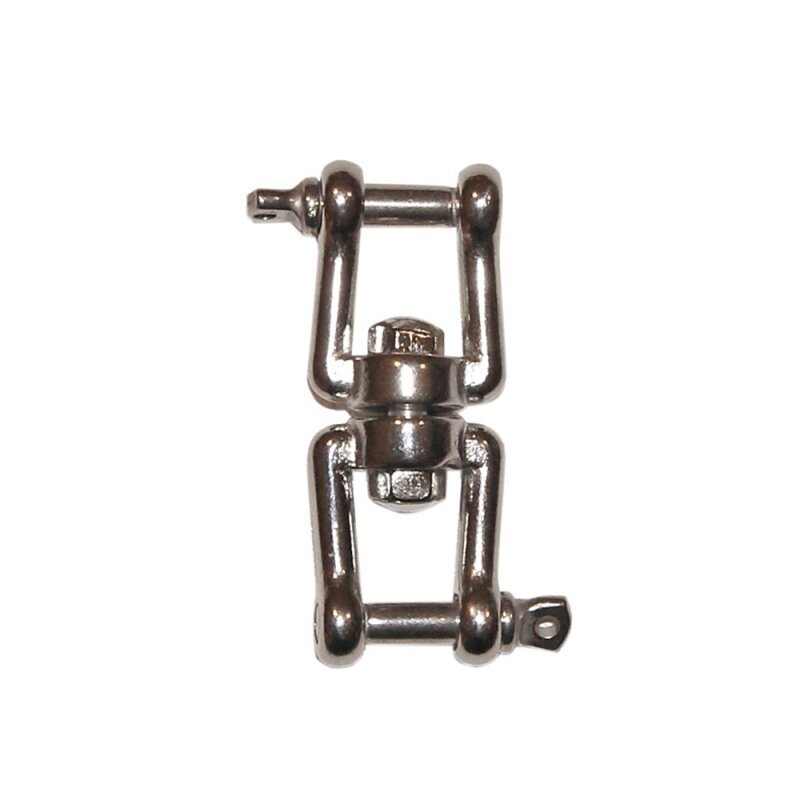

AISI 316 Stainless Steel Jaw-to-Jaw Swivels
The AISI 316 Stainless Steel Jaw-to-Jaw Swivels are heavy-duty rotating connectors designed to provide free rotation between two jaw fittings while reducing twisting forces on ropes, chains, and rigging components. Their jaw-to-jaw configuration allows secure attachment using removable pins, making them suitable for numerous marine and industrial applications.
Manufactured from premium marine-grade AISI 316 stainless steel, these swivels provide outstanding corrosion resistance and long service life in freshwater and saltwater environments. Their precision-machined rotating body ensures smooth movement while maintaining reliable strength and durability under demanding operating conditions.
Key Features
- Marine-grade AISI 316 stainless steel construction
- Jaw-to-jaw swivel design with removable pins
- Smooth 360° rotation
- Reduces twisting of ropes, chains and rigging
- Excellent corrosion resistance
- Suitable for marine and industrial applications
- Available in six sizes
Available Variants
Article Diameter Length (A) Jaw Width (B) Jaw Opening (C) 0404935 Ø5 mm 60 mm 11 mm 10 mm 0404936 Ø6 mm 66 mm 12 mm 12 mm 0404938 Ø8 mm 94 mm 16 mm 16 mm 0404940 Ø10 mm 118 mm 22 mm 20 mm 0404942 Ø13 mm 152 mm 28 mm 26 mm 0404946 Ø16 mm 188 mm 37 mm 32 mm
Technical Specifications
Product Type Jaw-to-Jaw Swivel Material AISI 316 Stainless Steel Connection Type Jaw / Jaw Rotation 360° free rotation Available Diameters Ø5 mm, Ø6 mm, Ø8 mm, Ø10 mm, Ø13 mm, Ø16 mm Applications Marine rigging, mooring systems, lifting equipment, chain and rope connections Environment Freshwater and saltwater use
Applications
- Standing and running rigging
- Anchor and mooring systems
- Marine deck hardware
- Lifting and hoisting equipment
- Chain and rope assemblies
- Industrial rotating connections
-
