ID
1378849
$ 5.64
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
- 10
- 13
The Euromarine Double Shackle Swivel is manufactured from A4 stainless steel and combines a swivel with two integrated shackles for flexible anchoring, mooring, and rigging applications. Available in Ø6 mm, Ø8 mm, Ø10 mm, and Ø13 mm sizes, it offers overall lengths from 66 mm to 152 mm and breaking loads from 1,130 kg to 4,550 kg, providing reliable articulation and corrosion resistance in marine environments.
- Description
- Ask a Question
-

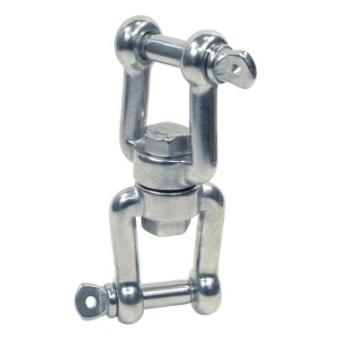

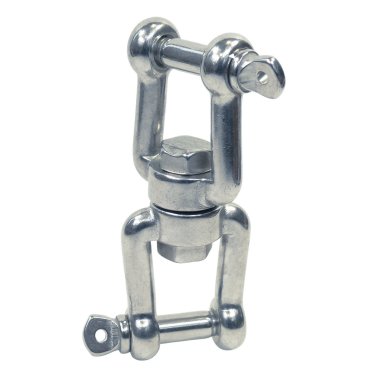

Euromarine A4 Stainless Steel Double Shackle Swivel – Ø6 mm, Ø8 mm, Ø10 mm, Ø13 mm
The Euromarine Double Shackle Swivel is manufactured from A4 stainless steel and is designed for marine applications requiring a strong and corrosion-resistant articulated connection. The swivel incorporates shackles at both ends, providing flexibility and freedom of movement while reducing twisting loads within the anchoring or mooring system.
Key Features
- A4 stainless steel construction
- Double shackle swivel design
- Excellent corrosion resistance for marine environments
- Provides articulation between connected components
- Suitable for anchoring, mooring, and rigging applications
Available Variants
Diameter A B Length (L) Breaking Load Bulk SKU Packed SKU Ø6 mm 11 mm 12 mm 66 mm 1,130 kg EMMM064 005290 Ø8 mm 16 mm 16 mm 88 mm 2,000 kg EMMM084 005291 Ø10 mm 22 mm 20 mm 118 mm 3,150 kg EMMM104 005292 Ø13 mm 28 mm 26 mm 152 mm 4,550 kg EMMM124 005293
Technical Specifications
- Material: A4 Stainless Steel
- Construction: Double Shackle Swivel
- Diameter Range: 6 mm to 13 mm
- Breaking Load Range: 1,130 kg to 4,550 kg
- Length Range: 66 mm to 152 mm
Applications
- Anchor systems
- Mooring systems
- Chain and rope connections
- Marine rigging applications
Brand
- Manufacturer: Euromarine
-
