ID
1378822
$ 1.17
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
- 10
- 12
- 14
- 16
- 18
- 20
The Trem Galvanized Bow Shackle is manufactured from galvanized steel and designed for mooring, lifting, towing, and general marine applications. The bow (lyre) shape provides additional internal space compared to a standard D shackle, making it suitable for connecting multiple ropes, chains, or fittings. Available in diameters from 6 mm to 20 mm, with working loads ranging from 100 kg to 1100 kg, each shackle is CE marked and stamped with its diameter for easy identification and traceability.
- Description
- Ask a Question
-

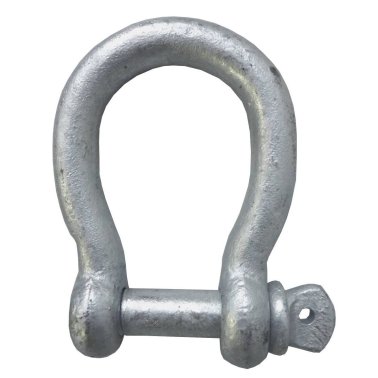

Trem Galvanized Bow Shackle – Ø6-20 mm
The Trem Galvanized Bow Shackle is a robust fastening component designed for marine, lifting, towing, and mooring applications. Manufactured from galvanized steel, it offers increased resistance to corrosion and reliable long-term performance in demanding environments.
The bow-shaped design provides a larger internal working area than a standard D shackle, allowing greater flexibility when connecting multiple components. Each shackle is marked with the CE symbol and diameter identification to ensure traceability and compliance.
Key Features
- Galvanized steel construction
- Bow (lyre) shackle design for increased connection space
- Suitable for mooring, towing, and lifting applications
- Corrosion-resistant finish
- CE marked
- Diameter identification stamped on each shackle
- Available in multiple sizes from 6 mm to 20 mm
Applications
- Mooring systems
- Anchor connections
- Towing operations
- Lifting applications
- Marine rigging
- General fastening and connection tasks
Available Variants
SKU Diameter Internal Height Internal Width Working Load AC360206 6 mm 25 mm 13 mm 100 kg AC360208 8 mm 32 mm 16 mm 200 kg AC360210 10 mm 33 mm 19 mm 320 kg AC360212 12 mm 48 mm 25 mm 520 kg AC360214 14 mm 55 mm 28 mm 600 kg AC360216 16 mm 62 mm 32 mm 800 kg AC360218 18 mm 68 mm 33 mm 1000 kg AC360220 20 mm 76 mm 38 mm 1100 kg
Technical Specifications
Material Galvanized Steel Type Bow (Lyre) Shackle Diameter Range 6 mm – 20 mm Working Load Range 100 kg – 1100 kg Marking CE Mark and Diameter Identification -
