Trem AISI 316 Curved Double Swivel Anchor Chain Connector for 6–12 mm Chain

ID 1384474

$ 55.11

1-2 weeks delivery time

Diameter, mm:

6-8
10-12

The Trem AISI 316 Curved Double Swivel Anchor Chain Connector is designed to improve anchor alignment while minimizing chain twist during anchoring operations. Its curved body and double-swivel articulation help the anchor follow the natural lead into the bow roller, reducing stress on both the chain and windlass. Manufactured from marine-grade AISI 316 stainless steel, it is available for 6–8 mm and 10–12 mm anchor chains.

Description
Ask a Question

Trem AISI 316 Curved Double Swivel Anchor Chain Connector for 6–12 mm Chain

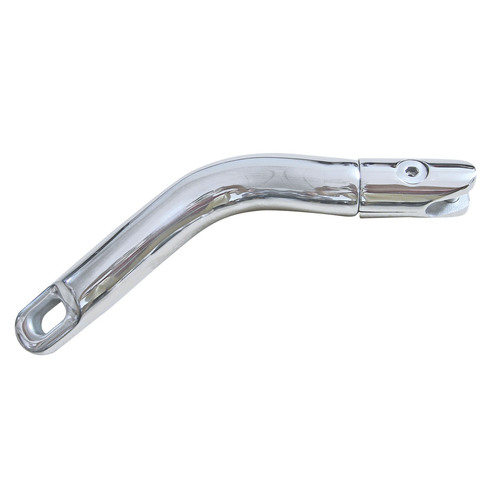

The Trem Curved Double Swivel Anchor Chain Connector is engineered to provide smooth anchor articulation while reducing chain twist during deployment and retrieval. Its curved profile improves alignment between the anchor, chain and bow roller, while the double-swivel construction allows free movement on multiple axes.

Manufactured from premium AISI 316 stainless steel, the connector delivers excellent corrosion resistance and long-term durability in harsh marine environments. It is designed for use with windlass systems and is suitable for sailing yachts, motorboats and other recreational vessels.

Key Features
- Marine-grade AISI 316 stainless steel construction
- Curved body for improved anchor alignment
- Double swivel design minimizes chain twisting
- Smooth operation with windlass systems
- Excellent corrosion resistance for saltwater use
- Available for 6–8 mm and 10–12 mm anchor chains
Available Versions

Article Chain Size W1/W2 W3 L L1 D Weight

M1308810 6–8 mm 11 mm 28 mm 220 mm 10 mm 7 mm 0.980 kg

M1312812 10–12 mm 13 mm 38 mm 300 mm 14 mm 10.5 mm 2.550 kg

Applications
- Connecting anchors to anchor chains
- Windlass anchor systems
- Reducing chain twist during anchoring
- Improving anchor alignment with bow rollers
- Sailing yachts, motorboats and recreational vessels
Brand: Trem
