Trem Galvanized D Shackle

ID 1378813

$ 0.93

1-2 weeks delivery time

Diameter, mm:

The Trem Galvanized D Shackle is manufactured from galvanized steel for lifting, towing, mooring, and general marine applications. Available in diameters from 6 mm to 20 mm, these straight-pattern shackles provide corrosion resistance and are stamped with the CE mark, diameter, and working load. Depending on size, working loads range from 100 kg to 1100 kg, with internal heights from 25 mm to 76 mm and internal widths from 13 mm to 38 mm.

Description
Ask a Question

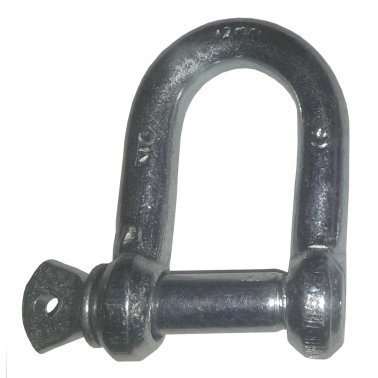

Trem Galvanized D Shackle – Ø6-20 mm

The Trem Galvanized D Shackle is designed for lifting, towing, mooring, and general fastening applications. Manufactured from galvanized steel, it offers improved corrosion resistance and durability for marine and industrial environments.

Each shackle is stamped with the CE marking, diameter, and working load, providing clear identification and compliance information. The straight D-shackle design makes it suitable for a wide range of connection and fastening tasks where a secure and reliable attachment point is required.

Key Features

Galvanized steel construction
Straight D-shackle design
Suitable for lifting, towing, and mooring applications
Corrosion-resistant galvanized finish
CE marked
Diameter and working load stamped on each shackle
Available in multiple sizes

Applications

Mooring systems
Towing operations
Lifting applications
Marine rigging
General fastening and connection points

Available Variants

SKU	Diameter	Internal Height	Internal Width	Working Load
AC360106	6 mm	25 mm	13 mm	100 kg
AC360108	8 mm	32 mm	16 mm	200 kg
AC360110	10 mm	38 mm	19 mm	320 kg
AC360112	12 mm	48 mm	25 mm	520 kg
AC360114	14 mm	55 mm	28 mm	600 kg
AC360116	16 mm	62 mm	32 mm	800 kg
AC360117	20 mm	76 mm	38 mm	1100 kg
AC360119	18 mm	68 mm	33 mm	1000 kg

Technical Specifications

Material	Galvanized Steel
Type	D Shackle
Diameter Range	6 mm – 20 mm
Working Load Range	100 kg – 1100 kg
Marking	CE Mark, Diameter and Working Load
