The Wichard Stainless Steel Auto-Lock Swivel Shackles are designed for secure, high-strength rotating connections in demanding marine applications. Manufactured from corrosion-resistant stainless steel with a forged swivel body, these fittings feature a self-locking pin that enhances safety while preventing accidental loosening. Available in 60 mm, 80 mm, and 120 mm versions for a wide range of rigging, anchoring, and load-handling applications.
- Description
- Ask a Question
-

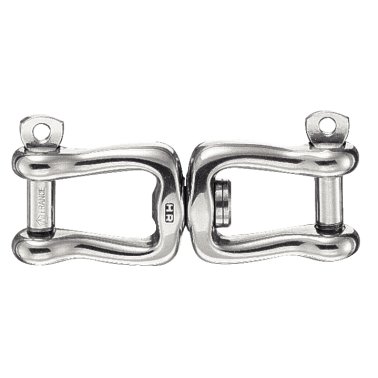

Wichard Stainless Steel Auto-Lock Swivel Shackles
The Wichard Stainless Steel Auto-Lock Swivel Shackles are premium rotating connectors engineered for demanding marine and professional applications. Their swivel body allows smooth 360° rotation, helping to reduce twisting forces on ropes, chains, and rigging while maintaining secure connections.
Constructed from high-quality forged stainless steel, these swivels combine exceptional mechanical strength with excellent corrosion resistance for long-term operation in harsh marine environments. Selected models are equipped with Wichard's self-locking pin system, providing additional security against accidental pin loosening during operation.
Key Features
- Original Wichard swivel shackles
- Forged stainless steel construction
- Smooth 360° swivel rotation
- Self-locking pin on applicable models
- Excellent corrosion resistance
- Suitable for marine, sailing and industrial applications
- Available in multiple sizes
Available Variants
Plastimo SKU Wichard OEM Model Length Material 403882 W 2462 Shoulder Axle Swivel Shackle 60 mm Stainless Steel 414641 W 2463 Auto-Lock Swivel Shackle 80 mm Forged Stainless Steel 316L / HR 17.4 PH 414642 W 2469 Auto-Lock Swivel Shackle 120 mm Forged Stainless Steel 316L / HR 17.4 PH
Technical Specifications
Product Type Swivel Shackle Brand Wichard Material Forged Stainless Steel Rotation 360° swivel Connection Type Shackle / Shackle Security Self-locking pin on Auto-Lock models Applications Rigging, anchoring, mooring, lifting and marine hardware Environment Freshwater and saltwater use
Model Specifications
Model Pin Ø Useful Height Useful Width Break Load Safe Working Load 60 mm Shoulder Axle Not specified Not specified Not specified Not specified Not specified 80 mm Auto-Lock 8 mm 17 mm 11 mm 2800 kg 1440 kg 120 mm Auto-Lock 10 mm 27 mm 18 mm 5000 kg 2000 kg
Applications
- Sailing and yacht rigging
- Anchor and mooring systems
- Blocks and running rigging
- Load-handling equipment
- Marine deck hardware
- Professional offshore applications
-
