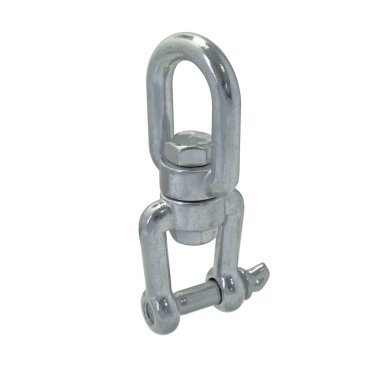

Euromarine A4 Stainless Steel Eye & Shackle Swivel

ID 1378854

$ 7.06

1-2 weeks delivery time

Diameter, mm:

The Euromarine Eye & Shackle Swivel is manufactured from A4 stainless steel and combines a swivel eye with an integrated shackle for anchoring, mooring, and rigging applications. Available in diameters from 6 mm to 19 mm, with overall lengths from 66 mm to 229 mm and breaking loads from 1,130 kg to 10,000 kg, it provides excellent corrosion resistance and reliable articulation between connected components.

Description
Ask a Question

Euromarine A4 Stainless Steel Eye & Shackle Swivel – Ø6 mm, Ø8 mm, Ø10 mm, Ø13 mm, Ø16 mm, Ø19 mm

The Euromarine Eye & Shackle Swivel is manufactured from A4 stainless steel and is designed for marine applications requiring a strong, corrosion-resistant connection with rotational freedom. Featuring a swivel eye at one end and a shackle at the other, it helps reduce twisting forces while maintaining reliable articulation between connected components.

Key Features

A4 stainless steel construction
Eye and shackle swivel design
Excellent corrosion resistance for marine environments
Provides articulation and rotational movement
Suitable for anchoring, mooring, and rigging applications

Available Variants

Diameter	A	B	Length (L)	Breaking Load	Bulk SKU	Packed SKU
Ø6 mm	11 mm	12 mm	66 mm	1,130 kg	EMO064	005280
Ø8 mm	16 mm	16 mm	88 mm	2,000 kg	EMO084	005281
Ø10 mm	22 mm	20 mm	118 mm	3,150 kg	EMO104	005282
Ø13 mm	28 mm	26 mm	152 mm	4,550 kg	EMO124	005283
Ø16 mm	37 mm	34 mm	188 mm	7,500 kg	AC282116	AC282116B1
Ø19 mm	45 mm	38 mm	229 mm	10,000 kg	AC282119	AC282119B1
