The Maxwell RC8-8 24V 1000W 165TDC CW Vertical Anchor Windlass with Drum (Vetus P105839) is a mid-range automatic rope/chain windlass from the Maxwell RC Series, designed for 24 V DC systems and powered by a 1000 W motor. This vertical configuration is suitable for 8 mm (5/16") short link chain and 14–16 mm (9/16"–5/8") nylon rope and is equipped with a fluted stainless steel drum for independent rope handling operations. With a maximum pull of approximately 600 kg and a compact 165 TDC layout, the windlass is intended for reliable anchoring applications on yachts and powerboats.
- Description
- Ask a Question
-

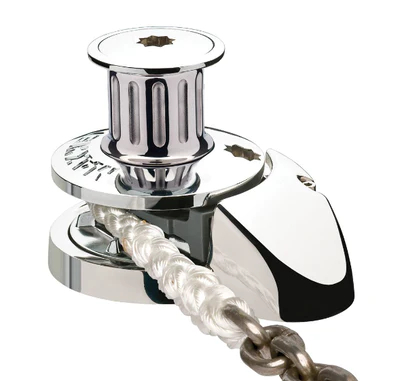

Maxwell RC8-8 24V 1000W 165TDC CW Vertical Anchor Windlass with Drum (Vetus P105839)
The Maxwell RC8-8 is an automatic vertical rope/chain anchor windlass from the Maxwell RC Series, positioned as a mid-range solution for marine anchoring systems. The unit features a combined stainless steel and chromed bronze construction, providing durability and corrosion resistance in demanding marine environments. This capstan version is supplied with a fluted stainless steel drum, allowing independent rope handling operations alongside standard anchor deployment and retrieval.
Specification Value Vetus Part Number P105839 Series Maxwell RC Series (RC8-8) Voltage 24 V DC Motor Power 1000 W Installation Type Vertical Operation Automatic rope / chain Drum Yes, fluted stainless steel drum Total Deck Clearance 165 TDC Maximum Pull / Lift Approximately 600 kg Weight Approximately 8 kg Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain size: 8 mm (5/16")
- Compatible chain range: 6–7 mm
- Rope material: Nylon
- Rope diameter: 14–16 mm (9/16"–5/8")
Key Features
- Automatic vertical rope/chain anchor windlass for marine use
- Mid-range model within the Maxwell RC Series lineup
- Combined stainless steel and chromed bronze construction
- Supplied with fluted stainless steel drum for independent rope handling
- Compact 165 TDC configuration suitable for limited deck space
- CW chainwheel orientation
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while the vessel is under way.
-
