ID
1281721
$ 2,513.50
1-2 weeks delivery time
-
+
The Maxwell RC8-8 24V 1000W 165TDC CW Vertical Windlass (Vetus P105837) is a 24-volt DC marine anchoring windlass from the RC8 Series engineered for reliable rope and chain handling. Powered by a robust 1000 W motor and designed for 8 mm (5/16") chain spliced to 14–16 mm (9/16"–5/8") nylon rope, this CW (clockwise) chainwheel-only configuration provides efficient anchor retrieval and deployment performance for yachts and powerboats requiring mid-range vertical anchoring capability.
- Description
- Ask a Question
-

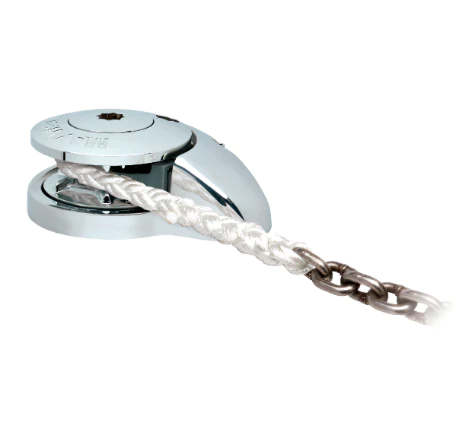

Maxwell RC8-8 24V 1000W 165TDC CW Vertical Windlass (Vetus P105837)
Specification Detail Model RC8-8 165TDC CW Vetus Part Number P105837 Power Supply 24 V DC Motor Power 1000 W Chain Compatibility 8 mm (5/16") short link Rope Compatibility 14–16 mm (9/16"–5/8") nylon Gypsy Type CW (clockwise rotation) Drum Not included (chainwheel only) Suitable TDC 165TDC (Total Deck Clearance) Design Vertical rope/chain windlass
Key Features
- Vertical automatic rope/chain windlass suitable for mixed rode anchoring applications. :contentReference[oaicite:1]{index=1}
- 1000 W motor optimized for 24 V DC power systems on recreational vessels. :contentReference[oaicite:2]{index=2}
- 165TDC chainwheel with clockwise orientation for standard anchor retrieval. :contentReference[oaicite:3]{index=3}
- Compatible with 8 mm (5/16") chain and 14–16 mm (9/16"–5/8") nylon rope. :contentReference[oaicite:4]{index=4}
- Chainwheel-only configuration allows flexible installation and accessory options. :contentReference[oaicite:5]{index=5}
Installation and Operation
- Deck-through vertical mount, requires appropriate deck cut-out and support structure. :contentReference[oaicite:6]{index=6}
- Self-aligning gearbox and robust construction for smooth operation and marine durability. :contentReference[oaicite:7]{index=7}
- Manual override capability (standard for RC series models, accessory crank/clutch handle). :contentReference[oaicite:8]{index=8}
Performance Notes
- RC8 Series windlasses are designed for balanced rope/chain systems with strong pull and hold performance relative to power. :contentReference[oaicite:9]{index=9}
- Recommended for yachts and powerboats where mid-range anchoring power and reliability are needed. :contentReference[oaicite:10]{index=10}
-
