ID
1281914
$ 10,485.74
1-2 weeks delivery time
-
+

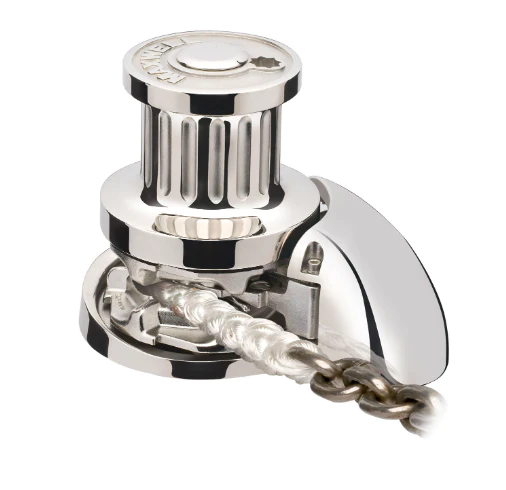

The Vetus P105468 Maxwell RC12-HD is a vertical hydraulic GT windlass with integrated drum and clockwise rotation (100 TDC), designed for anchor handling with 12 mm chain. Constructed from AISI 316 stainless steel, the unit features a GT hydraulic system rated at 120 bar and has overall dimensions of 1130 × 510 × 470 mm with a net weight of 40 kg, providing a robust and corrosion-resistant solution for marine deck installations.
- Description
- Ask a Question
-
Vetus P105468 Maxwell RC12-HD Hydraulic GT 120 Bar Windlass with Drum 12mm Chain 100TDC CW
The Maxwell RC12-HD hydraulic GT windlass is a heavy-duty vertical anchoring system engineered for marine applications requiring durability, corrosion resistance, and reliable hydraulic performance. Its integrated drum and compact vertical layout support efficient rope and chain handling on deck.
Design and Application
- Vertical hydraulic windlass configuration with integrated drum.
- Designed for controlled anchor handling in marine environments.
- Suitable for deck installations where robustness and compact dimensions are required.
- Clockwise rotation with 100 TDC chainwheel configuration.
Construction
- Manufactured from corrosion-resistant AISI 316 stainless steel.
- Designed for long-term use in harsh marine conditions.
- Rigid structure supports stable operation under load.
Hydraulic System
- Hydraulic GT drive system.
- Rated operating pressure: 120 bar.
- Provides consistent torque for anchor deployment and retrieval.
Parameter Specification Manufacturer Part Number P105468 Model Maxwell RC12-HD Windlass Type Vertical hydraulic GT windlass with drum Rotation Direction Clockwise (CW) Chainwheel Code 100 TDC Hydraulic Pressure Rating 120 bar Supported Chain Diameter 12 mm Material AISI 316 stainless steel Overall Length 1130 mm Overall Width 510 mm Overall Height 470 mm Weight 40 kg
Operational Characteristics
- Designed for marine deck anchoring operations.
- Integrated drum allows controlled rope handling and storage.
- Hydraulic GT system supports smooth and reliable operation.
- Suitable for installations requiring corrosion-resistant deck equipment.
-
