The Vetus P104974 Maxwell RC12-HD is a heavy-duty vertical electric rope/chain windlass powered by a 24 V DC 2000 W motor and configured with a 200 TDC clockwise chainwheel. Designed for 10–13 mm short link chain and 18–24 mm nylon rope, it delivers a maximum pull of 1820 kg and is engineered to meet Classification Society test requirements for 12.5 mm U1 stud link chain, making it suitable for high-speed and patrol-type vessels.
- Description
- Ask a Question
-
Vetus P104974 Maxwell RC12-HD 24V 2000W Electric Windlass 12mm Chain 200TDC CW

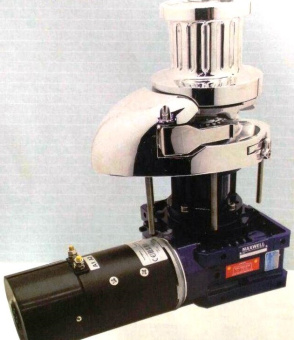

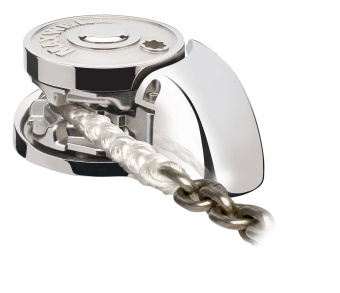

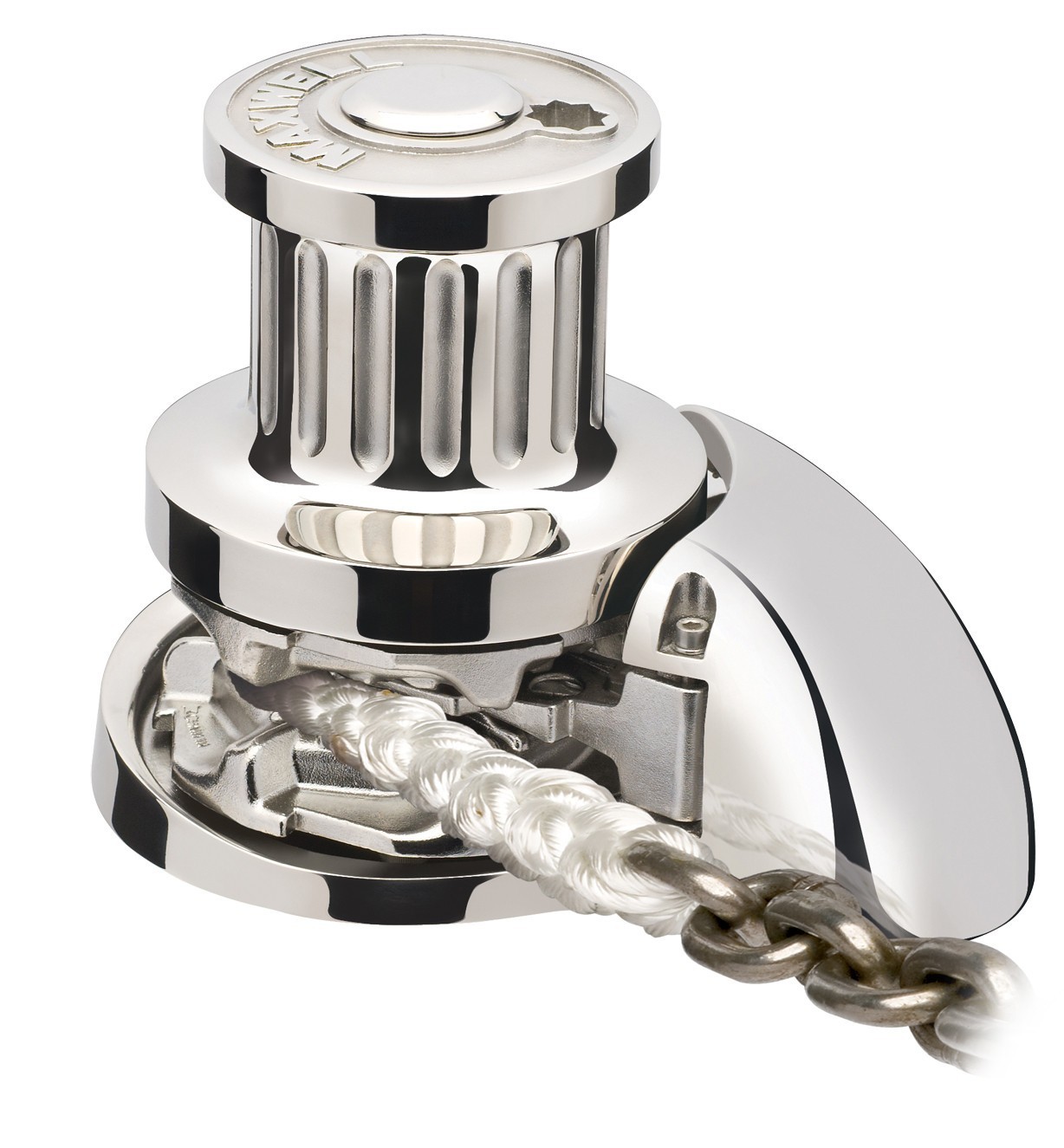

The Maxwell RC12-HD electric windlass is a heavy-duty vertical anchoring system designed for demanding marine applications where high performance and reduced forward weight are essential. Its compatibility with rope/chain combination rodes makes it particularly suitable for high-speed vessels.
Design and Application
- Optimized for vessels requiring high service speeds, including patrol and professional craft.
- Vertical windlass configuration for compact and efficient deck installation.
- Rope/chain combination reduces weight at the bow, improving vessel trim.
- Designed to meet typical Classification Society test requirements.
Drive System
- Heavy-duty 24 V DC electric motor rated at 2000 W.
- Fan-cooled motor combined with fin-cooled gearbox for extended operation.
- Run time varies with load: continuous operation up to 300 kgf and up to 5 minutes at 700 kgf.
- Engineered for consistent performance under demanding anchoring conditions.
Chain and Rope Handling
- Designed for 10–13 mm short link chain.
- Compatible with 18–24 mm nylon rope.
- Equipped with Maxwell patented Wave Design™ chainwheel for smooth chain engagement.
- Configured without drum for installations using separate rope handling solutions.
Parameter Specification Manufacturer Part Number P104974 Model Maxwell RC12-HD Windlass Type Vertical electric rope/chain windlass Voltage 24 V DC Motor Power 2000 W Rotation Direction Clockwise (CW) Chainwheel Code 200 TDC Maximum Pull / Lift 1820 kg Supported Chain Diameter 10–13 mm (nominal 12 mm) Supported Rope Diameter 18–24 mm nylon Drum No Orientation Vertical
Operational Characteristics
- Designed for frequent anchoring cycles in professional marine environments.
- High pull capacity supports demanding anchoring operations.
- Electric drive provides precise and controllable anchor handling.
- Compatible with other RC12-HD series components.
-
