ID
1300594
$ 9,416.89
1-2 weeks delivery time
-
+
The Vetus P104995 Maxwell RC12-HD is a vertical hydraulic rope/chain windlass without drum, configured with a 200 TDC clockwise chainwheel. Designed for 10–13 mm short link chain and 18–24 mm nylon rope, it is engineered to meet Classification Society test requirements for 12.5 mm U1 stud link chain and provides a maximum pull capacity of 1200 kg, making it suitable for vessels requiring high service speeds and reduced bow weight.
- Description
- Ask a Question
-

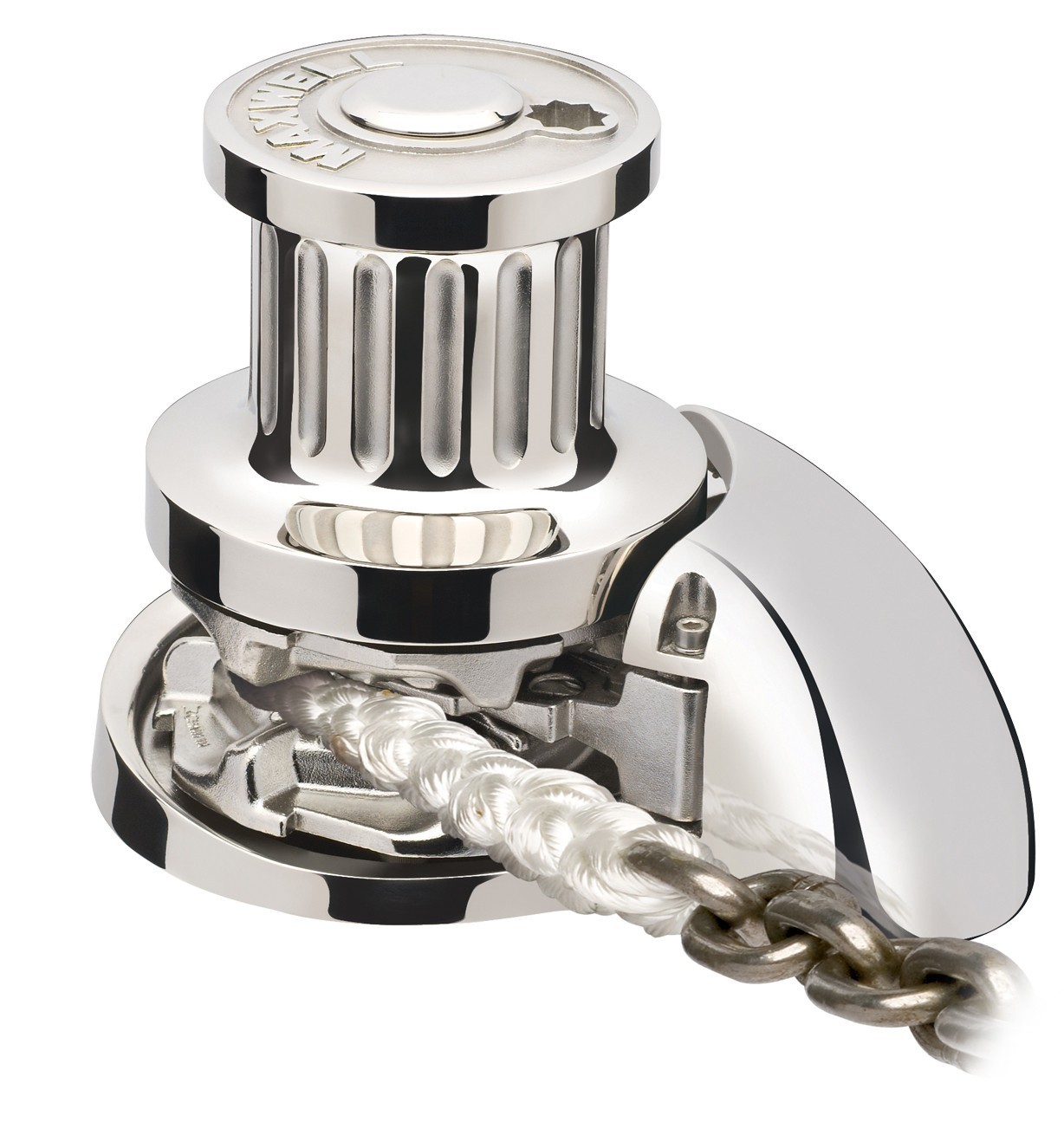

Vetus P104995 Maxwell RC12-HD Hydraulic Windlass 12mm Chain 200TDC CW
The Maxwell RC12-HD hydraulic windlass is a heavy-duty vertical rope/chain anchoring system developed for demanding marine applications. Its design supports rope/chain combination rodes, reducing forward vessel weight and improving trim, which makes it particularly suitable for high-speed and patrol-type vessels.
Design and Application
- Optimized for vessels requiring high service speeds and efficient weight distribution.
- Vertical windlass configuration for compact and effective deck installation.
- Designed to meet typical Classification Society test requirements.
- Compatible with 12.5 mm U1 stud link chain test specifications.
Drive System

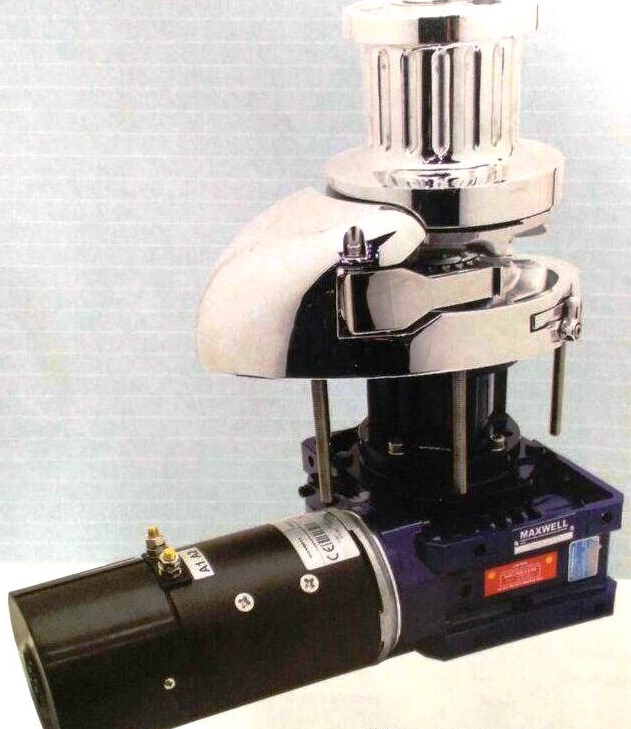

- Hydraulic motor configuration.
- Engineered for extended operating periods under load.
- Heavy-duty construction suitable for professional marine use.
- Equipped with Maxwell patented Wave Design™ chainwheel for reliable chain handling.
Chain and Rope Handling
- Designed for 10–13 mm short link chain.
- Compatible with 18–24 mm nylon rope.

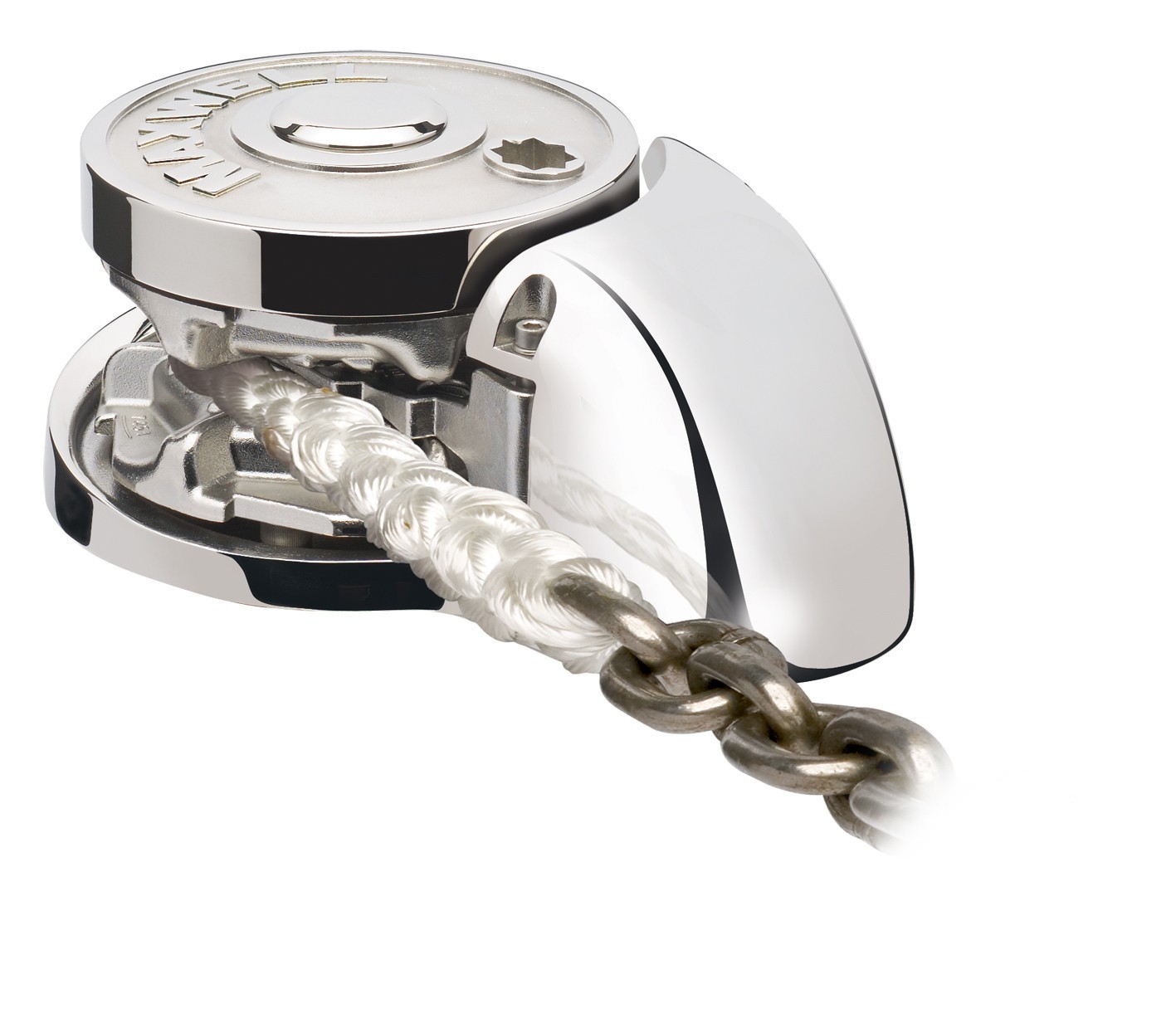

- Configured without drum for installations using separate rope handling solutions.
- Rope/chain combination reduces overall anchoring system weight.
Parameter Specification Manufacturer Part Number P104995 Model Maxwell RC12-HD Windlass Type Vertical hydraulic rope/chain windlass Rotation Direction Clockwise (CW) Chainwheel Code 200 TDC Maximum Pull / Lift 1200 kg Supported Chain Diameter 10–13 mm (nominal 11 mm) Supported Rope Diameter 18–24 mm nylon (nominal 16–20 mm) Drum No Orientation Vertical
Operational Characteristics
- Designed for frequent anchoring cycles in professional marine environments.
- Hydraulic drive provides consistent torque under varying load conditions.
- High pull capacity supports demanding anchoring operations.
- Compatible with other RC12-HD series components.
-
