The Maxwell RC12-HD Hydraulic Windlass with Drum (P104993) is a vertical rope/chain windlass designed for 10–13 mm short link chain and 18–24 mm nylon rope. It supports a maximum pull of up to 1200 kg and is engineered for high-duty marine applications requiring reliable continuous operation and reduced foredeck weight.
- Description
- Ask a Question
-

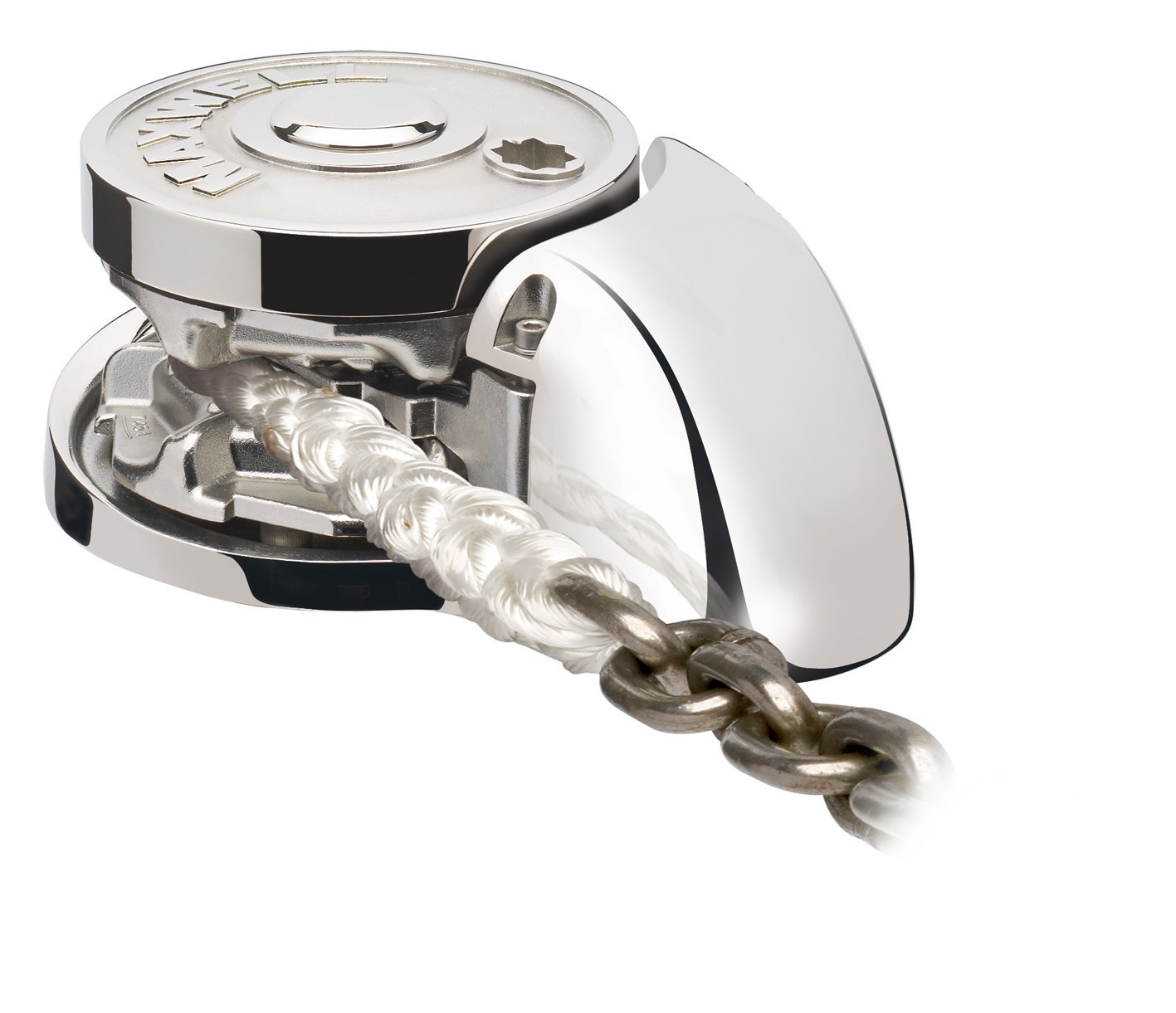

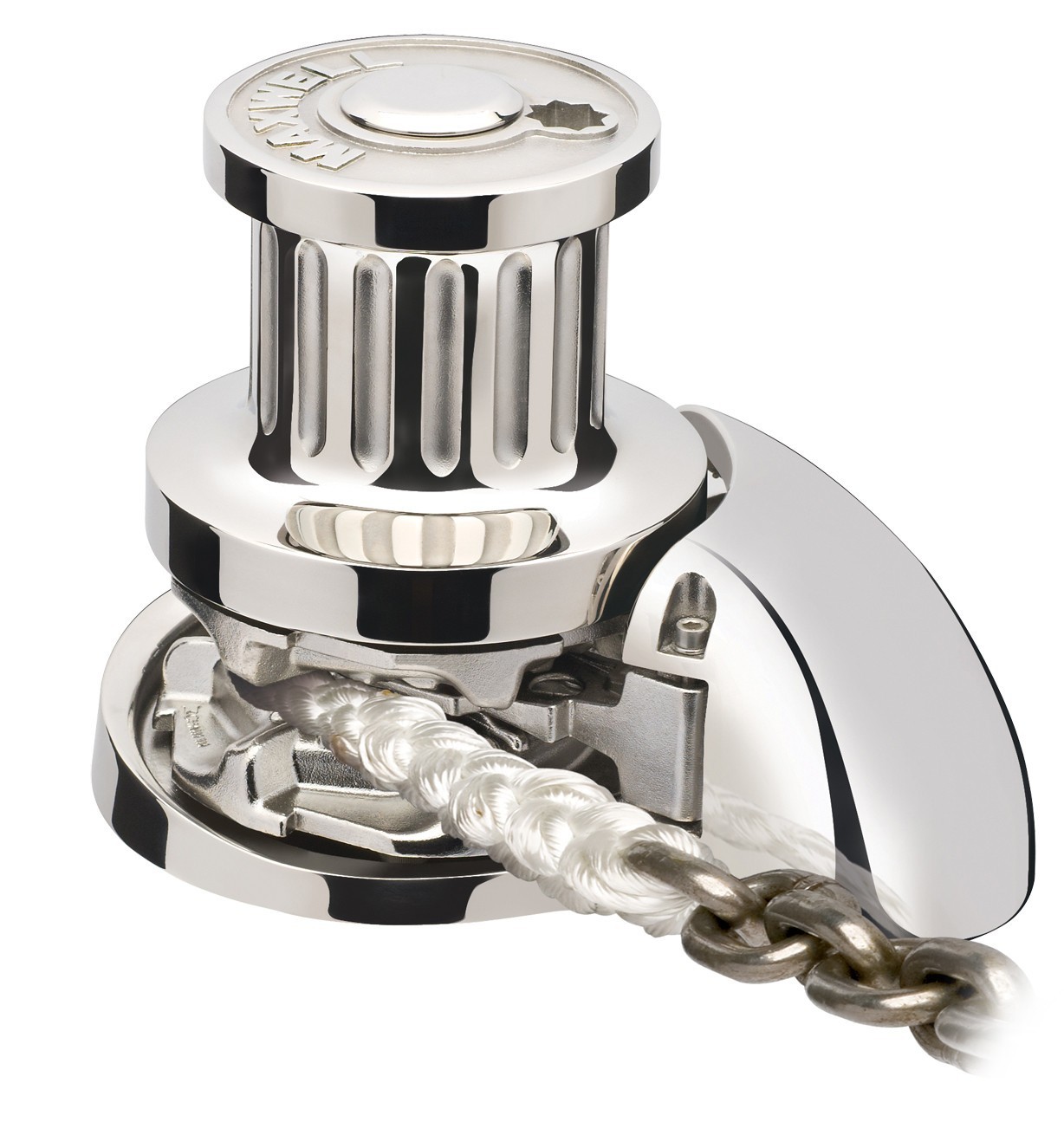

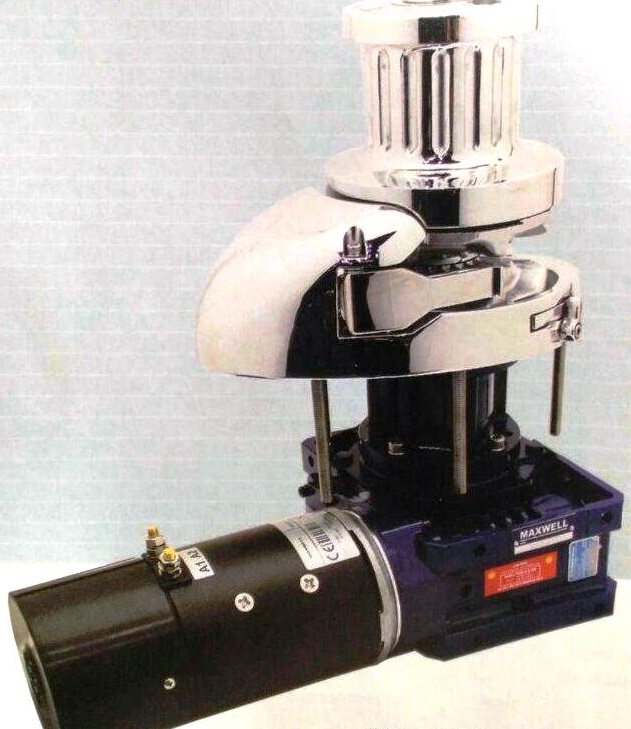

Maxwell RC12-HD Hydraulic Vertical Windlass with Drum
The Maxwell RC12-HD is a heavy-duty vertical windlass engineered for vessels that demand high service speeds and reliable anchoring performance. Its design is particularly suitable for patrol and professional vessels, where reduced rope and chain weight contributes to improved vessel balance and handling.
The windlass is compatible with short link chain and nylon rope combinations and is designed to meet typical Classification Society test requirements for 12.5 mm U1 stud link chain. The hydraulic drive configuration ensures consistent performance under demanding operating conditions.
Key Design Features
- Vertical windlass configuration for efficient deck installation
- Integrated drum for rope handling versatility
- Wave Design™ chainwheel for smooth and secure chain engagement
- Designed for extended operational duty cycles
- Optimized for reduced weight rope/chain combinations
Technical Specifications
Parameter Specification Operating Type Hydraulic Installation Orientation Vertical Rope / Chain Compatibility Rope / Chain Drum Yes Maximum Pull / Lift 1200 kg Chain Diameter 11 mm Rope Diameter 16–20 mm
Application Notes
- Suitable for vessels requiring high service speeds
- Designed for professional and patrol vessel use
- Supports mixed rope and chain anchoring systems
- Optimized for demanding marine operating environments
-
