ID
1281919
$ 9,494.35
1-2 weeks delivery time
-
+
The Vetus P104972 Maxwell RC12-HD is a heavy-duty vertical electric rope/chain windlass with integrated drum, powered by a 24 V DC 2000 W motor and equipped with a 200 TDC clockwise chainwheel. Designed for 10–13 mm short link chain and 18–24 mm nylon rope, it delivers a maximum pull of 1820 kg and is engineered to meet Classification Society test requirements for 12.5 mm U1 stud link chain, making it suitable for high-speed and patrol-type vessels.
- Description
- Ask a Question
-

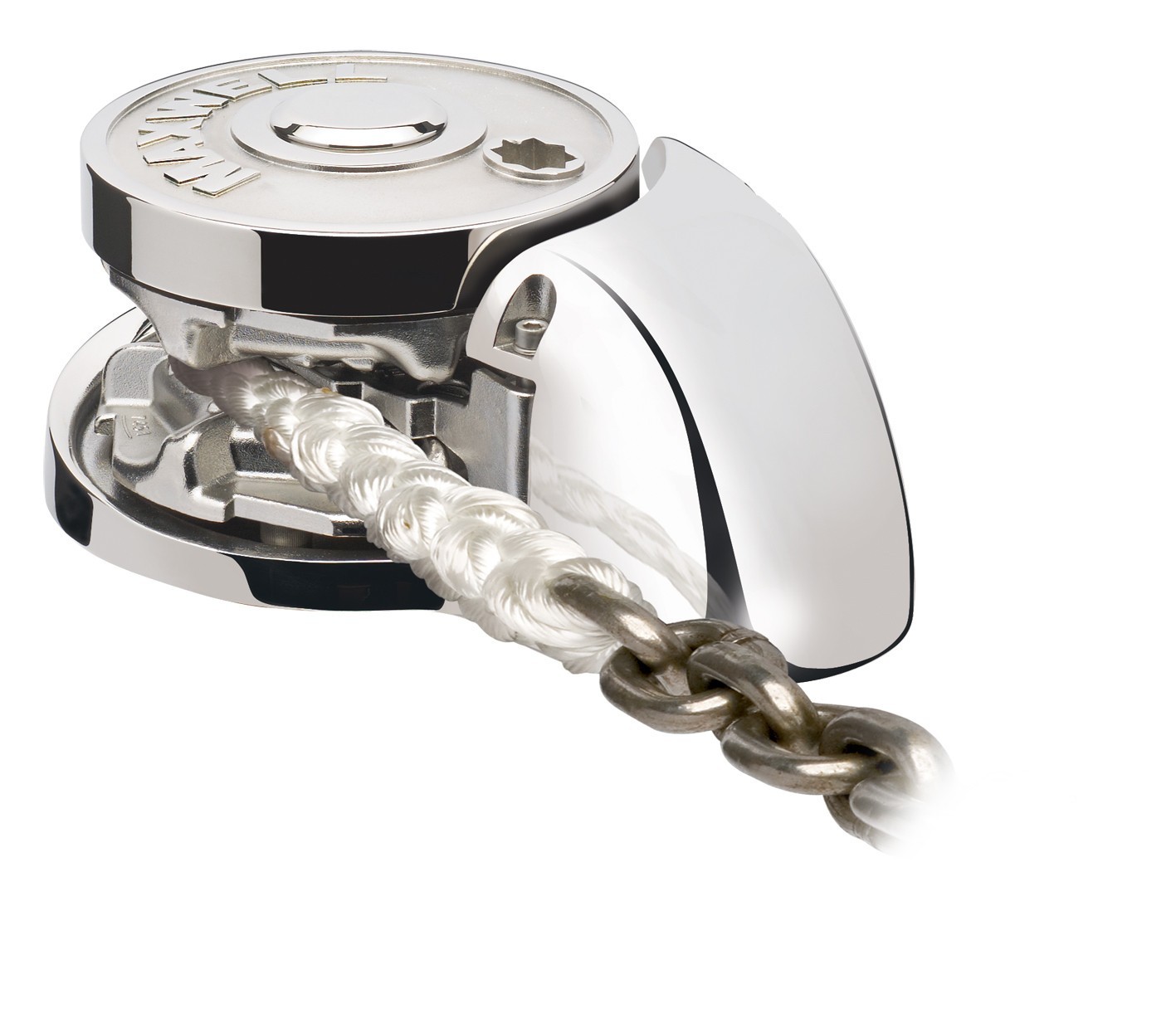

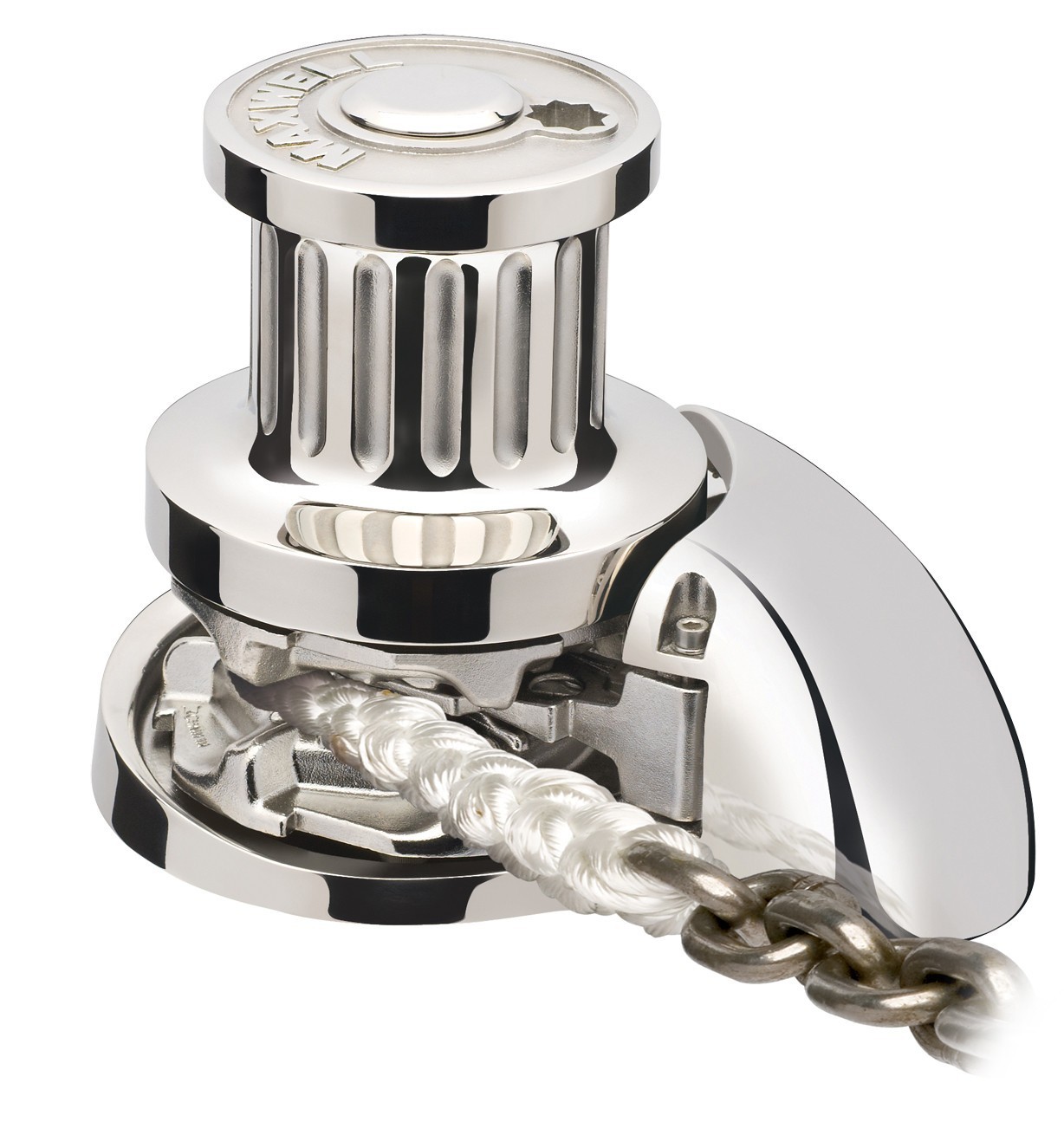

Vetus P104972 Maxwell RC12-HD 24V 2000W Electric Windlass with Drum 12mm Chain 200TDC CW
The Maxwell RC12-HD is a heavy-duty vertical electric windlass engineered for demanding marine anchoring applications. Its design supports rope/chain combination rodes, reducing forward vessel weight and making it particularly suitable for vessels requiring high service speeds.
Design and Application
- Optimized for high-speed and patrol-type vessels.
- Vertical windlass configuration for compact and efficient deck installation.
- Rope/chain combination rodes reduce bow weight and improve vessel trim.
- Designed to meet typical Classification Society test requirements.

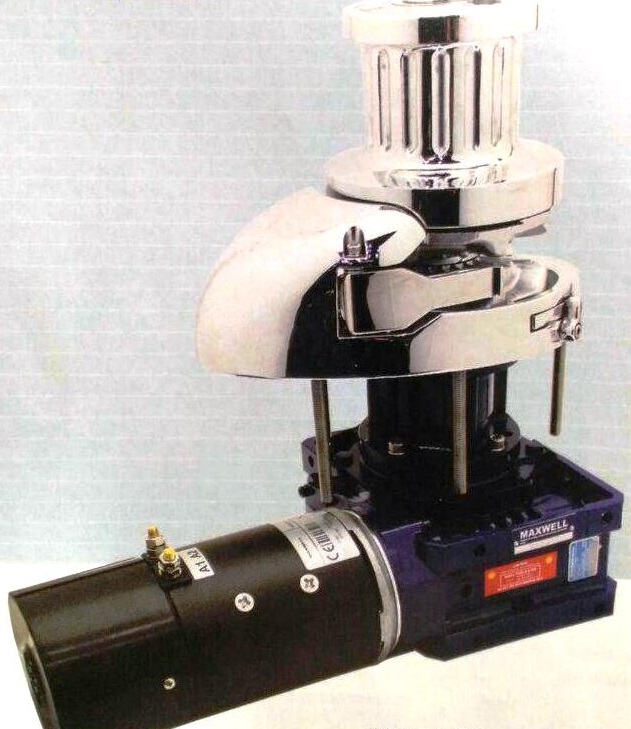

Drive System
- Heavy-duty 24 V DC electric motor rated at 2000 W.
- Fan-cooled motor combined with fin-cooled gearbox for extended operation.
- Run time varies with load: continuous operation up to 300 kgf and up to 5 minutes at 700 kgf.
- Designed for consistent performance under demanding anchoring conditions.
Chain and Rope Handling
- Designed for 10–13 mm short link chain.
- Compatible with 18–24 mm nylon rope.
- Equipped with Maxwell patented Wave Design™ chainwheel for smooth chain engagement.
- Integrated drum allows controlled rope handling and storage.
Parameter Specification Manufacturer Part Number P104972 Model Maxwell RC12-HD Windlass Type Vertical electric rope/chain windlass with drum Voltage 24 V DC Motor Power 2000 W Rotation Direction Clockwise (CW) Chainwheel Code 200 TDC Maximum Pull / Lift 1820 kg Supported Chain Diameter 10–13 mm (nominal 12 mm) Supported Rope Diameter 18–24 mm nylon Drum Yes Orientation Vertical
Operational Characteristics
- Designed for frequent anchoring cycles in professional marine environments.
- High pull capacity supports demanding anchoring operations.
- Electric drive provides precise and controllable anchor handling.
- Compatible with other RC12-HD series components.
-
