ID
1281913
$ 9,829.75
1-2 weeks delivery time
-
+
The Vetus P104990 Maxwell RC12-HD is a vertical hydraulic rope/chain windlass with integrated drum and clockwise rotation (100 TDC), designed for 10–13 mm short link chain and 18–24 mm nylon rope. Engineered to meet Classification Society test requirements for 12.5 mm U1 stud link chain, it provides a maximum pull capacity of 1200 kg and is well suited for vessels requiring high service speeds and reduced bow weight.
- Description
- Ask a Question
-

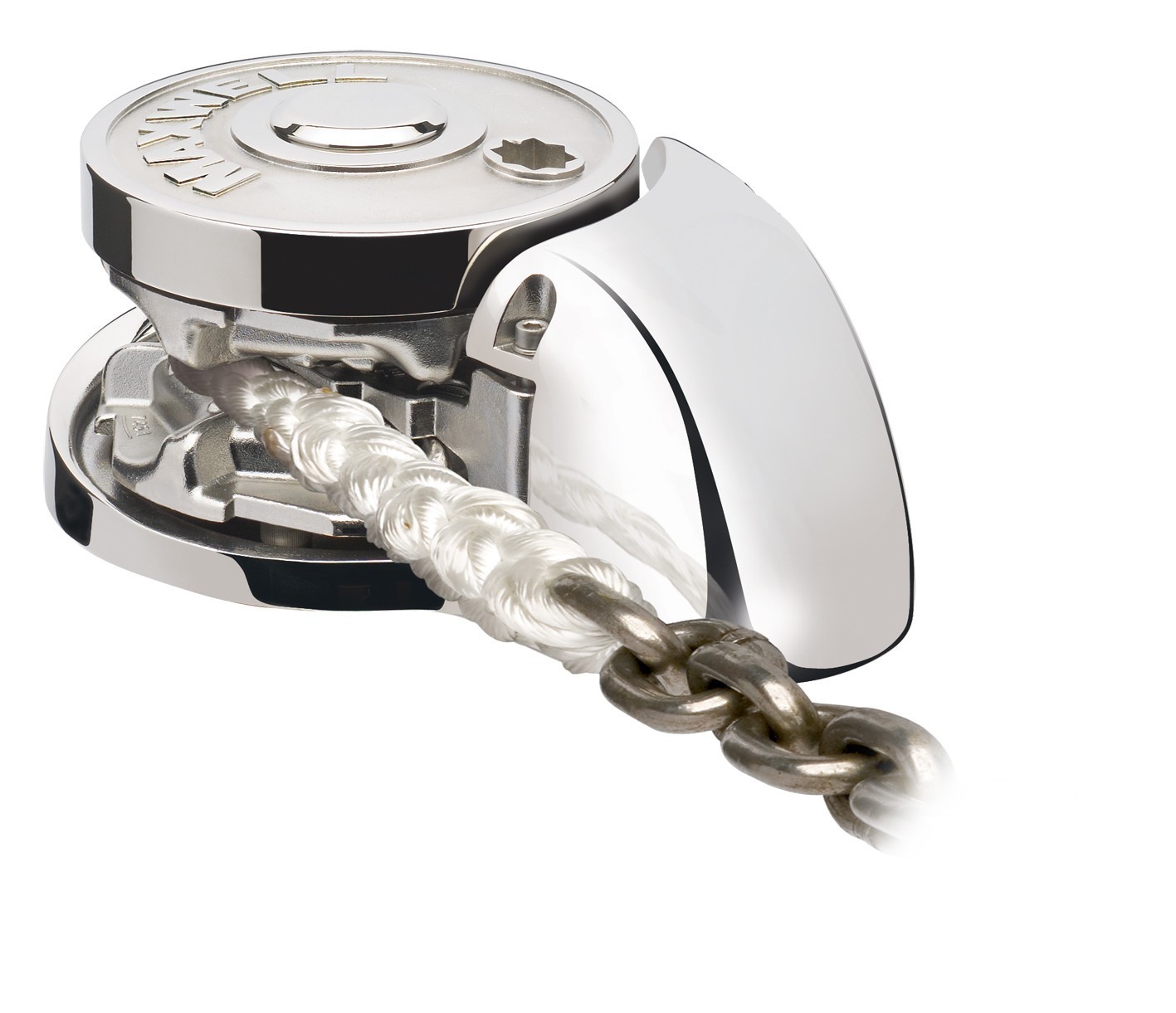

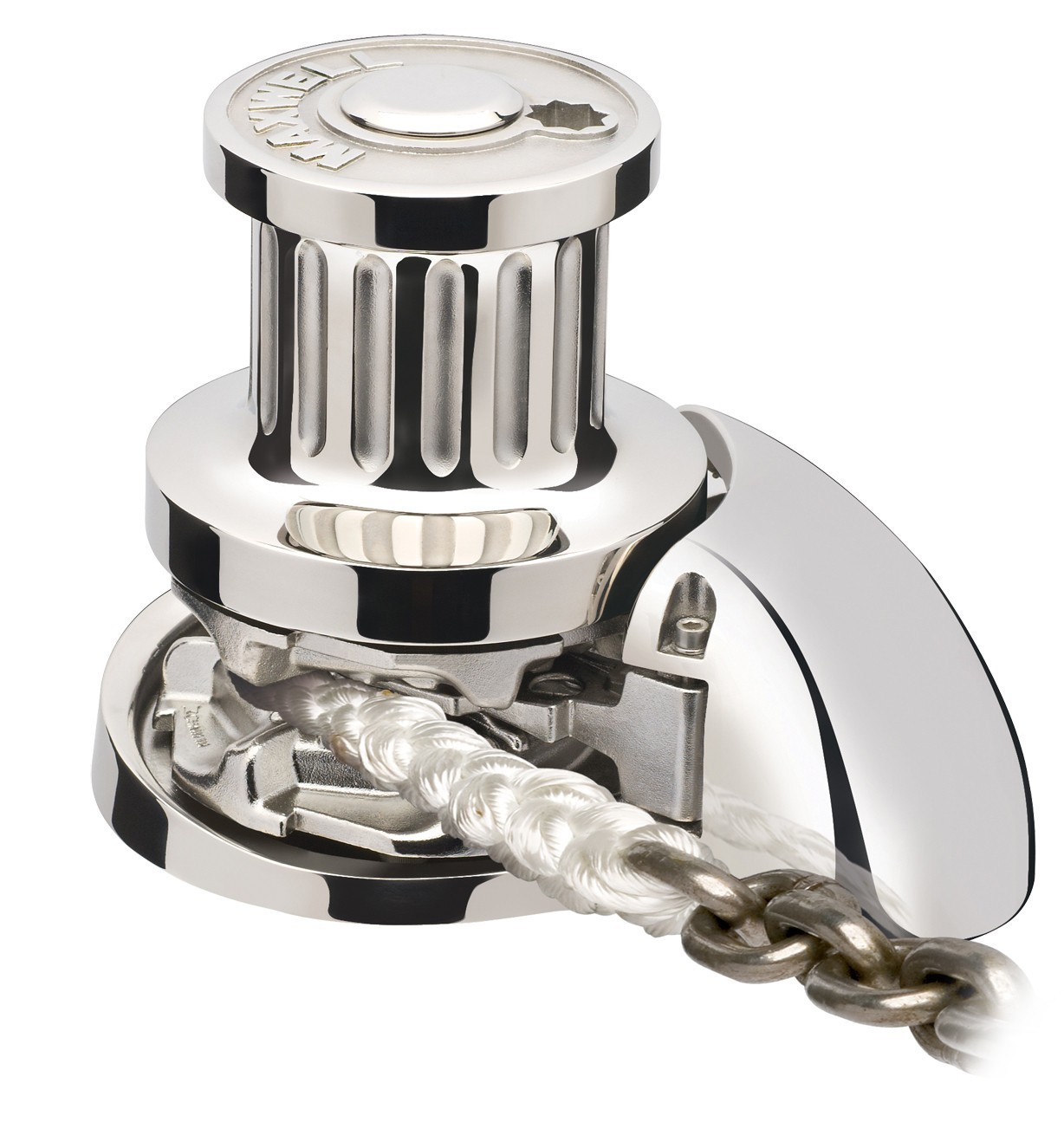

Vetus P104990 Maxwell RC12-HD Hydraulic Windlass with Drum 12mm Chain 100TDC CW
The Maxwell RC12-HD hydraulic windlass is a heavy-duty vertical rope/chain anchoring system developed for demanding marine applications. Its design supports rope/chain combination rodes, significantly reducing forward vessel weight and making it particularly suitable for high-speed vessels such as patrol craft.
Design and Application
- Optimized for vessels requiring high service speeds and efficient weight distribution.
- Vertical windlass configuration for compact and effective deck installation.
- Designed to meet typical Classification Society test requirements.
- Compatible with 12.5 mm U1 stud link chain test specifications.

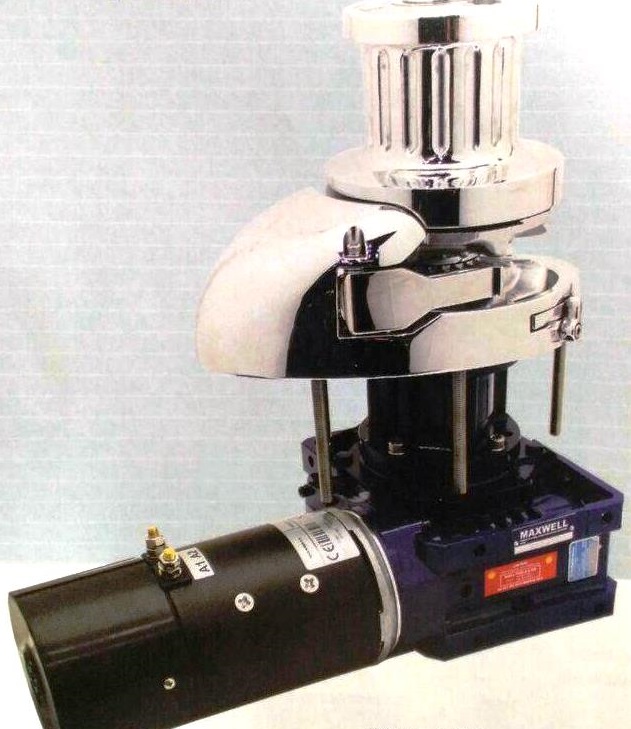

Drive System
- Hydraulic motor configuration.
- Engineered for extended operating periods under load.
- Heavy-duty construction suitable for professional marine use.
- Equipped with Maxwell patented Wave Design™ chainwheel for improved chain handling.
Chain and Rope Handling
- Designed for 10–13 mm short link chain.
- Compatible with 18–24 mm nylon rope.
- Integrated drum enables controlled rope storage and handling.
- Rope/chain combination reduces overall anchoring system weight.
Parameter Specification Manufacturer Part Number P104990 Model Maxwell RC12-HD Windlass Type Vertical hydraulic rope/chain windlass Rotation Direction Clockwise (CW) Chainwheel Code 100 TDC Maximum Pull / Lift 1200 kg Supported Chain Diameter 10–13 mm (nominal 11 mm) Supported Rope Diameter 18–24 mm nylon (nominal 16–20 mm) Drum Yes Orientation Vertical
Operational Characteristics
- Designed for rope/chain anchor rodes in professional marine environments.
- Suitable for vessels operating with frequent anchoring cycles.
- Hydraulic configuration provides consistent torque under varying loads.
- Engineered for reliability in demanding anchoring conditions.
-
