The Vetus P102768 – Maxwell 1000 VW is a hydraulic vertical anchor windlass with integrated warping drum and 50 TDC configuration, designed for rope and chain combination anchor rodes. Developed for sailing boats with limited anchor locker space, this hydraulic model supports manual rope-to-chain transfer, controlled free-fall anchoring, and reliable handling of 6–10 mm short link chain in compact marine installations.
- Description
- Ask a Question
-

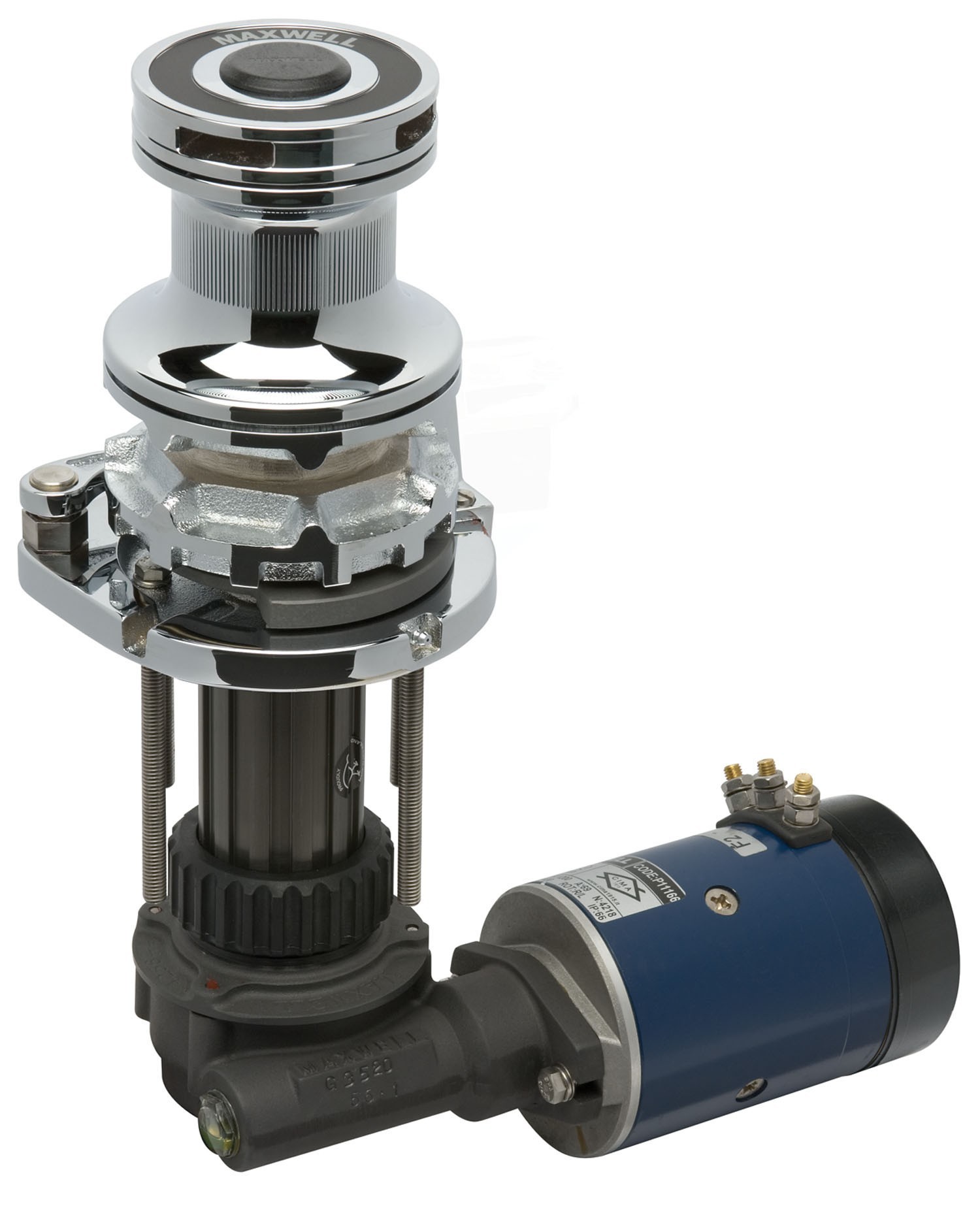

Vetus P102768 – Maxwell 1000 VW Hydraulic Vertical Anchor Windlass with Drum
The Maxwell 1000 VW hydraulic anchor windlass is part of the VW Series, designed for traditional rope and chain combination anchor rodes where manual transfer of the rode from the rope warping drum to the chainwheel is required. The compact 50TDC configuration allows installation in sailing boat anchor lockers with minimal available space while maintaining dependable anchoring performance.
Specification Value Product Code Vetus P102768 Series Maxwell VW Series Drive Type Hydraulic Windlass Orientation Vertical Rode Type Rope / Chain Combination Warping Drum Yes Total Deck Clearance (TDC) 50 mm Weight 15 kg Maximum Pull / Lift 700 kg Short Link Chain Size 6 – 10 mm Standard Chain Size 6 – 8 mm
Design and Functional Features
- Designed for traditional rope and chain anchor rodes with manual transfer between drum and chainwheel
- Provides versatility to operate two anchors from a single windlass
- Independent MAX-grip™ warping drum enables rope hauling from any direction
- Chainwheel clutch disengagement allows positive control of all ropes
- Permits the use of traditional shackle and thimble rope-to-chain connections
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316)
- Chromed bronze components for enhanced corrosion resistance and long-term durability
- Anodized aluminium gearbox and spacer for reduced weight and service life
- Marine-grade stainless steel (AISI 316) fasteners for secure through-deck installation
Operational and Installation Details
- Cone-type brake and clutch mechanism enables controlled manual free-fall anchoring
- Smooth, progressive clutch engagement ensures safe and precise operator control
- Chainwheel locking pawl included (except on VW500 and VW10 models)
- Hydraulic drive system designed for marine winch applications
- Modular construction simplifies installation and ensures accurate gearbox alignment
- Allows alternative horizontal mounting on a fore-and-aft bulkhead for below-deck installation
- Windlass can be easily disassembled for servicing and routine maintenance
-
