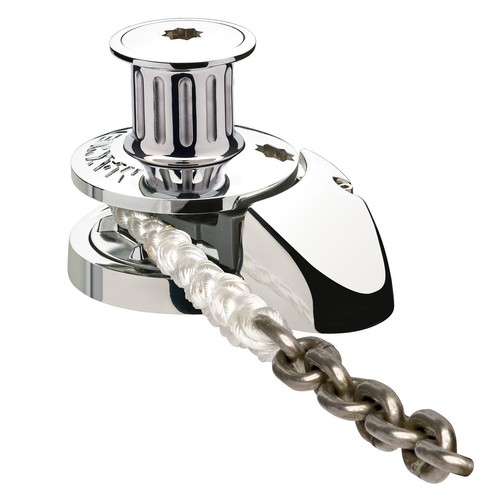

The Vetus P102556 Maxwell RC8-6 is a vertical automatic rope/chain windlass with integrated drum and increased deck clearance (165 TDC). Powered by a 12 V DC, 600 W motor, it is suitable for 6–7 mm short-link chain and 12 mm nylon rope. This model belongs to Maxwell’s mid-range RC Series and is designed for marine installations requiring additional through-deck depth.
- Description
- Ask a Question
-
Vetus P102556 Maxwell RC8-6 Vertical Rope/Chain Windlass with Drum 12V 600W with Extra Deck Clearance (165 TDC)
The Vetus P102556 Maxwell RC8-6 is a fully automatic vertical rope/chain anchor windlass with an integrated drum, designed for vessels with increased deck thickness requirements. This version provides a 165 mm through-deck clearance and forms part of Maxwell’s mid-range RC Series windlass range.
Design and Construction
- Windlass type: Vertical
- Automatic rope/chain operation
- Integrated drum (capstan) for increased operational flexibility
- Material combination: Stainless steel and chromed bronze
- Version with increased deck clearance (165 TDC)
Rope and Chain Compatibility
- Chain size: 6–7 mm short link (1/4")
- Rope size: 12 mm nylon rope
- Suitable for rope/chain combination
Performance
- Maximum pull/lift: 350 kg
- Designed for controlled anchor retrieval and deployment
Electrical Specifications
Parameter Value Power supply 12 V DC Motor power 600 W
Technical Specifications
Specification Value Windlass series Maxwell RC Rope/chain Rope/chain Drum Yes Net weight 12.5 kg Maximum pull/lift 350 kg
Installation Notes
- Designed for vertical mounting
- Extra deck clearance suitable for thicker deck constructions
- Must be used in conjunction with a chain stopper or alternative snubbing device
- Chain stopper or snubber must also be used to secure the anchor while under way
Manufacturer Information
- Manufacturer: Vetus
- Model: P102556
- Product type: Rope/chain anchor windlass with drum
-
