The Vetus P102564 Maxwell RC8-8 is a vertical automatic rope/chain windlass with integrated drum, designed for installation on decks up to 165 mm thick. Powered by a 12 V DC, 1000 W motor, it is suitable for 8 mm short-link chain and 14–16 mm nylon rope. This model provides a maximum pull of 600 kg and enables independent rope handling via the fluted stainless steel capstan.
- Description
- Ask a Question
-
Vetus P102564 Maxwell RC8-8 Vertical Rope/Chain Windlass with Drum 12V 1000W with Extra Deck Clearance (165 TDC)

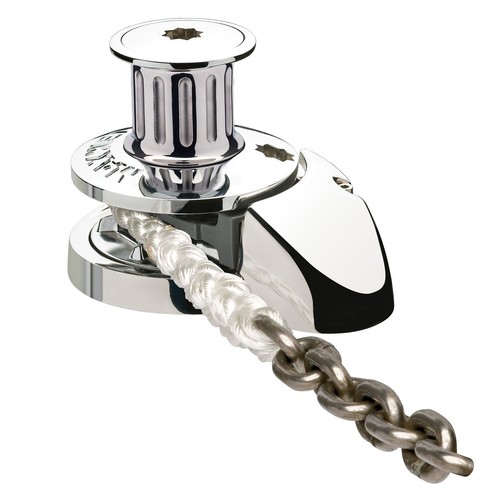

The Vetus P102564 Maxwell RC8-8 is a fully automatic vertical rope/chain anchor windlass equipped with an integrated fluted stainless steel drum. Designed for vessels with increased deck thickness, this version supports installations up to 165 mm and is part of the Maxwell RC8 Series mid-range windlass lineup.
Design and Construction
- Windlass type: Vertical
- Automatic rope/chain handling
- Integrated fluted stainless steel drum for independent rope operations
- Material combination: Stainless steel and chromed bronze
- Extra deck clearance version (165 TDC)
Rope and Chain Compatibility
- Chain size: 8 mm short link (DIN 766 / 5/16")
- Rope size: 14–16 mm nylon rope (9/16"–5/8")
- Suitable for rope/chain combination
Performance
- Maximum pull/lift: 600 kg
- Designed for controlled anchor deployment and retrieval
Electrical Specifications
Parameter Value Power supply 12 V DC Motor power 1000 W
Technical Specifications
Specification Value Windlass series Maxwell RC8 Rope/chain Rope/chain Drum Yes Net weight 8 kg Maximum pull/lift 600 kg Chain short link 8 mm Rope diameter 14–16 mm
Installation Notes
- Suitable for deck thicknesses up to 165 mm
- Designed for vertical mounting
- Must be used with a chain stopper or alternative snubbing device
- Chain stopper or snubber must secure the anchor while under way
Manufacturer Information
- Manufacturer: Vetus
- Model: P102564
- Product type: Rope/chain anchor windlass with drum
-
