The Vetus P102555 Maxwell RC8-6 is a vertical automatic rope/chain windlass with increased deck clearance (165 TDC), designed for use with 6–7 mm short-link chain and 12 mm nylon rope. Powered by a 24 V DC, 600 W motor, it delivers a maximum pull of 350 kg and is part of Maxwell’s mid-range RC Series, intended for marine installations requiring additional through-deck depth.
- Description
- Ask a Question
-

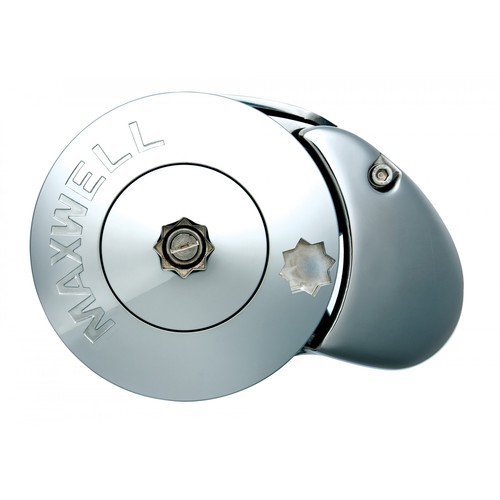

Vetus P102555 Maxwell RC8-6 Vertical Rope/Chain Windlass 24V 600W with Extra Deck Clearance (165 TDC)
The Vetus P102555 Maxwell RC8-6 is a fully automatic vertical rope/chain anchor windlass designed for vessels with increased deck thickness requirements. This version features a 165 mm through-deck clearance and belongs to Maxwell’s mid-range RC Series windlass lineup.
Design and Construction
- Windlass type: Vertical
- Automatic rope/chain operation
- Material combination: Stainless steel and chromed bronze
- Version with increased deck clearance (165 TDC)
Rope and Chain Compatibility
- Chain size: 6–7 mm short link (1/4")
- Rope size: 12 mm nylon rope
- Suitable for rope/chain combination
Performance
- Maximum pull/lift: 350 kg
- Designed for controlled anchor retrieval and deployment
Electrical Specifications
Parameter Value Power supply 24 V DC Motor power 600 W
Technical Specifications
Specification Value Windlass series Maxwell RC Rope/chain Rope/chain Drum No Net weight 12.5 kg Maximum pull/lift 350 kg
Installation Notes
- Designed for vertical mounting
- Extra deck clearance suitable for thicker deck constructions
- Must be used in conjunction with a chain stopper or alternative snubbing device
- Chain stopper or snubber must also be used to secure the anchor while under way
Manufacturer Information
- Manufacturer: Vetus
- Model: P102555
- Product type: Rope/chain anchor windlass
-
