$ 2,361.97
1-2 weeks delivery time
-
+
The Vetus P105833 Maxwell RC8-8 is a vertical automatic rope/chain windlass designed for deck installations with a maximum through-deck clearance of 65 mm. Powered by a 24 V DC, 1000 W motor, it is suitable for 8 mm short-link chain and 14–16 mm nylon rope. This model is supplied without a drum and delivers a maximum pull of 600 kg for reliable anchoring performance.
- Description
- Ask a Question
-

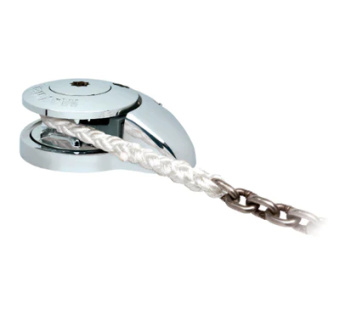

Vetus P105833 Maxwell RC8-8 Vertical Rope/Chain Windlass 24V 1000W 65 TDC
The Vetus P105833 Maxwell RC8-8 is a fully automatic vertical rope/chain anchor windlass engineered for compact deck installations. Designed with a low-profile configuration, this version supports a maximum through-deck clearance of 65 mm and forms part of Maxwell’s mid-range RC8 Series.
Design and Construction
- Windlass type: Vertical
- Automatic rope/chain operation
- Low-profile deck installation
- Material combination: Stainless steel and chromed bronze
- Configuration without drum
Rope and Chain Compatibility
- Chain size: 8 mm short link (DIN 766 / 5/16")
- Rope size: 14–16 mm nylon rope (9/16"–5/8")
- Suitable for rope/chain combination
- Patented Wave Design™ chainwheel for smooth and controlled handling
Performance
- Maximum pull/lift: 600 kg
- Static holding capacity suitable for high-load anchoring applications
- Designed for controlled anchor deployment and retrieval
Electrical Specifications
Parameter Value Power supply 24 V DC Motor power 1000 W
Installation Parameters
Parameter Value Maximum deck clearance (TDC) 65 mm Mounting orientation Vertical
Technical Specifications
Specification Value Windlass series Maxwell RC8 Rope/chain Rope/chain Drum No Maximum pull/lift 600 kg Chain short link 8 mm Rope diameter 14–16 mm
Installation Notes
- Designed for decks with limited thickness
- Must be used in conjunction with a chain stopper or alternative snubbing device
- Chain stopper or snubber must also secure the anchor while under way
Manufacturer Information
- Manufacturer: Vetus
- Model: P105833
- Product type: Rope/chain anchor windlass
-
