The Maxwell RC8-8 24V 1000W 165TDC CW Vertical Anchor Windlass with Drum (Vetus P102565) is a mid-range vertical rope/chain anchor windlass powered by a 1000 W motor and designed for 24 V DC systems. Suitable for 8 mm (5/16") chain and 14–16 mm (9/16"–5/8") nylon rope, this automatic RC Series model features a combined stainless steel and chromed bronze construction and includes a fluted stainless steel drum for independent rope handling operations. The unit delivers a maximum pull of 600 kg and is intended for marine anchoring applications requiring reliable vertical installation.
- Description
- Ask a Question
-

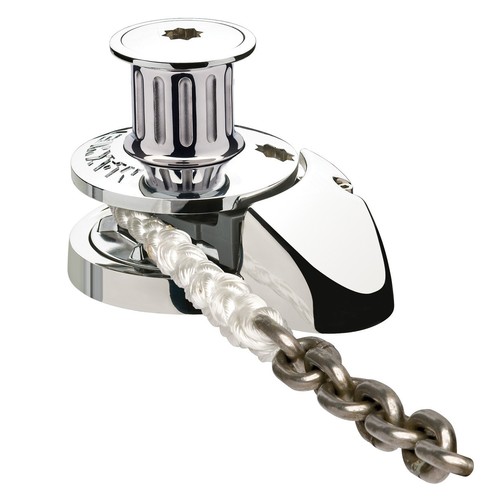

Maxwell RC8-8 24V 1000W 165TDC CW Vertical Anchor Windlass with Drum (Vetus P102565)
The Maxwell RC8-8 is a mid-range automatic vertical rope/chain anchor windlass from the RC Series. Manufactured with a combined stainless steel and chromed bronze construction, it is designed for reliable anchoring performance on marine vessels. This capstan version is supplied with a fluted stainless steel drum, allowing independent rope handling operations alongside standard rope/chain anchoring use.
Specification Value Vetus Part Number P102565 Series RC8-8 (RC Series) Voltage 24 V DC Motor Power 1000 W Installation Type Vertical Rope / Chain Handling Rope / Chain Drum Yes (fluted stainless steel drum) Total Deck Clearance 165 TDC Maximum Pull / Lift 600 kg Weight 8 kg
Rope and Chain Compatibility
- Suitable for short link chain: 8 mm (5/16")
- Compatible chain range: 6–7 mm
- Compatible rope type: Nylon
- Compatible rope diameter: 14–16 mm (9/16"–5/8")
Key Features
- Automatic vertical rope/chain anchor windlass for marine applications
- Mid-range model within the Maxwell RC Series windlass range
- Combined stainless steel and chromed bronze construction
- Capstan version supplied with fluted stainless steel drum
- Supports independent rope handling operations
- CW (clockwise) chainwheel configuration
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while under way.
-
