$ 2,534.38
1-2 weeks delivery time
-
+
The Vetus P102563 Maxwell RC8-8 is a vertical automatic rope/chain windlass designed for installation on decks up to 165 mm thick. Powered by a 24 V DC, 1000 W motor, it is suitable for 8 mm short-link chain and 14–16 mm nylon rope. This model provides a maximum pull of 600 kg and is part of Maxwell’s mid-range RC Series for higher-load anchoring applications.
- Description
- Ask a Question
-

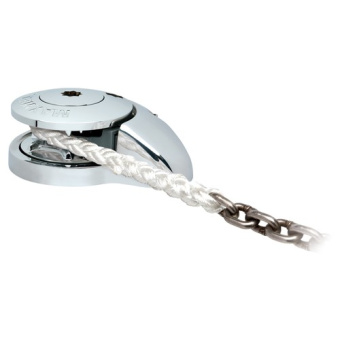

Vetus P102563 Maxwell RC8-8 Vertical Rope/Chain Windlass 24V 1000W with Extra Deck Clearance (165 TDC)
The Vetus P102563 Maxwell RC8-8 is a fully automatic vertical rope/chain anchor windlass engineered for vessels requiring increased through-deck clearance. This version is suitable for deck thicknesses up to 165 mm and belongs to the Maxwell RC8 Series, combining compact deck layout with high anchoring capability.
Design and Construction
- Windlass type: Vertical
- Automatic rope/chain operation
- Material combination: Stainless steel and chromed bronze
- Version with increased deck clearance (165 TDC)
- Designed for installation on thicker deck structures
Rope and Chain Compatibility
- Chain size: 8 mm short link (DIN 766 / 5/16")
- Rope size: 14–16 mm nylon rope (9/16"–5/8")
- Suitable for rope/chain combination
Performance
- Maximum pull/lift: 600 kg
- Designed for controlled anchor deployment and retrieval
Electrical Specifications
Parameter Value Power supply 24 V DC Motor power 1000 W
Technical Specifications
Specification Value Windlass series Maxwell RC8 Rope/chain Rope/chain Drum No Net weight 8 kg Maximum pull/lift 600 kg Chain short link 8 mm Rope diameter 14–16 mm
Installation Notes
- Suitable for deck thicknesses up to 165 mm
- Designed for vertical mounting
- Must be used with a chain stopper or alternative snubbing device
- Chain stopper or snubber must also secure the anchor while under way
Manufacturer Information
- Manufacturer: Vetus
- Model: P102563
- Product type: Rope/chain anchor windlass
-
