ID
1300743
$ 13,988.62
1-2 weeks delivery time
-
+
The Maxwell 3500 HWC Hydraulic Horizontal Windlass DCW/DD (Vetus P100258) is a heavy-duty marine anchoring system with a horizontal configuration and dual drum/dual chainwheel operation, driven by a hydraulic motor. Designed for demanding marine environments, it handles standard 10–13 mm chain with a maximum pull of ~1590 kg and features smooth, reliable hydraulic operation for larger vessels.
- Description
- Ask a Question
-

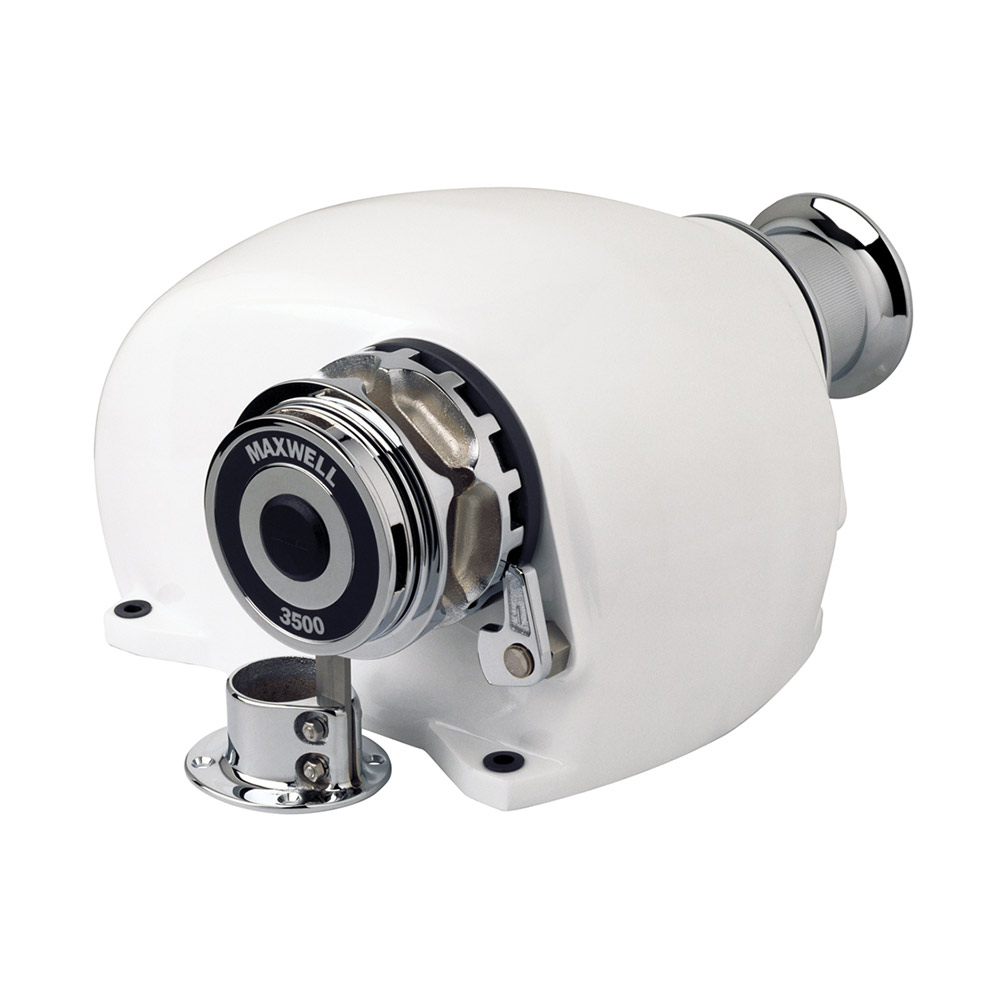

Maxwell 3500 HWC Hydraulic Horizontal Windlass DCW/DD (Vetus P100258)
Specification Details Model 3500 HWC DCW/DD Article Number Vetus P100258 Drive Type Hydraulic Maximum Pull Capacity 1590 kg (3500 lb) Chain Size Compatibility 10–13 mm (3/8″–1/2″) Line Speed (Typical) Approx. 12 m/min (39 ft/min)* Hydraulic Pressure Approx. 138 bar (2000 psi) Hydraulic Flow Approx. 40 l/min (11 US gal/min)
Key Features
- Hydraulic motor drive for high-performance and smooth anchoring operation
- Dual drum/dual chainwheel (DCW/DD) configuration for enhanced control
- Designed for automatic horizontal handling of anchor chain rodes
- Suitable for use with standard marine chains (10–13 mm)
- Robust construction for challenging offshore and high-load applications
Applications
- Primary anchoring system on large leisure vessels and commercial craft
- Hydraulic deck installation requiring reliable high-power operation
- Marine anchoring where smooth hydraulic control is essential
-
