ID
1300741
$ 13,346.10
1-2 weeks delivery time
-
+
The Maxwell 3500 HWC Horizontal Windlass 12V 1200W DCW/DD (Vetus P100256) is a heavy-duty horizontal marine windlass designed for powered anchor handling on medium and large vessels. The unit operates on a 12 V DC electrical system with a 1200 W motor, supports dual chainwheel configuration (DCW/DD), and is intended for use with 10–13 mm anchor chain, providing a maximum pull capacity of up to 1590 kg.
- Description
- Ask a Question
-

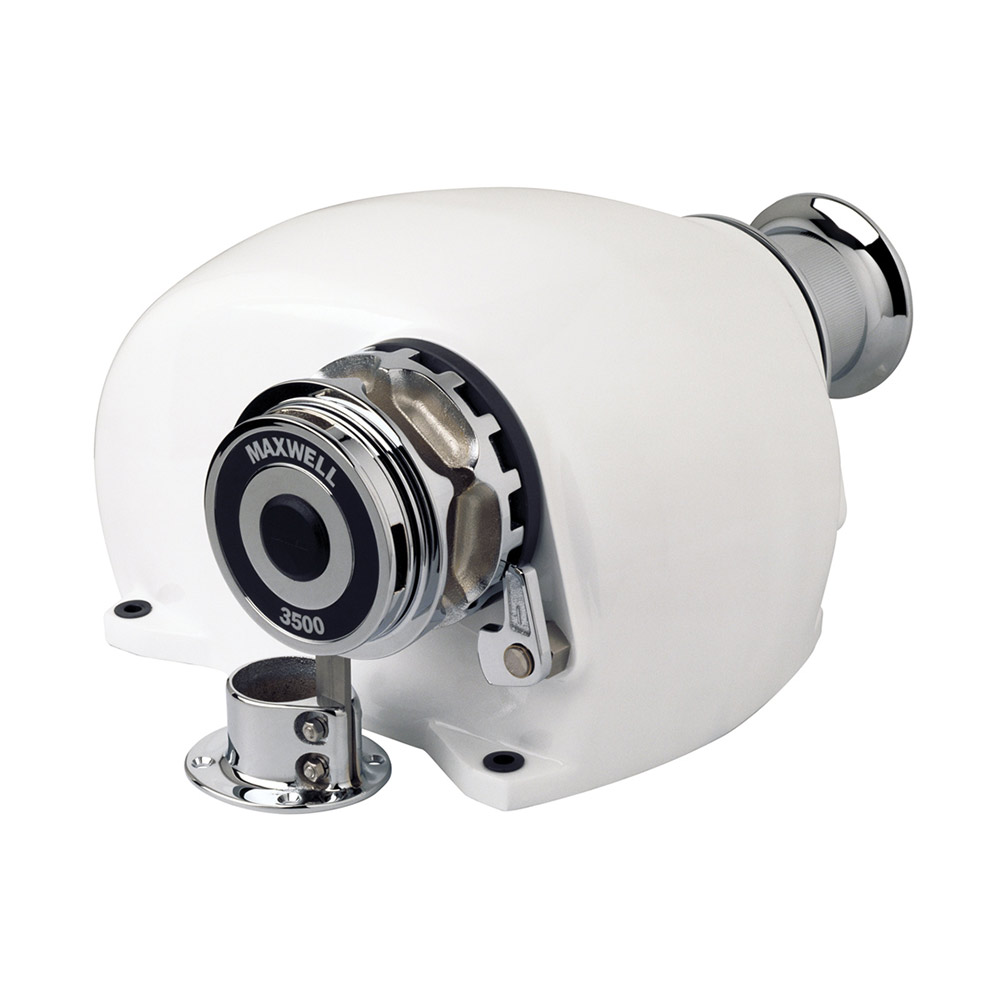

Maxwell 3500 HWC Horizontal Windlass 12V 1200W DCW/DD (Vetus P100256)
Parameter Specification Windlass Type Horizontal Model 3500 HWC DCW/DD Article Number Vetus P100256 Power Supply 12 V DC Motor Power 1200 W Maximum Pull 1590 kg Chain Size Compatibility 10–13 mm Drive Configuration Dual chainwheel, dual direction drive (DCW/DD)
Technical Features
- Horizontal deck-mounted windlass for powered anchor deployment and retrieval
- 12 V DC electric motor with 1200 W rated output
- Dual chainwheel configuration for controlled chain handling
- Designed for use with standard marine anchor chain sizes from 10 mm to 13 mm
- Heavy-duty construction suitable for high-load anchoring operations
Intended Use
- Marine anchoring systems on leisure and commercial vessels
- Applications requiring reliable horizontal windlass installation
- Automatic anchor chain handling under high mechanical load
-
