ID
1300745
$ 11,776.85
1-2 weeks delivery time
-
+

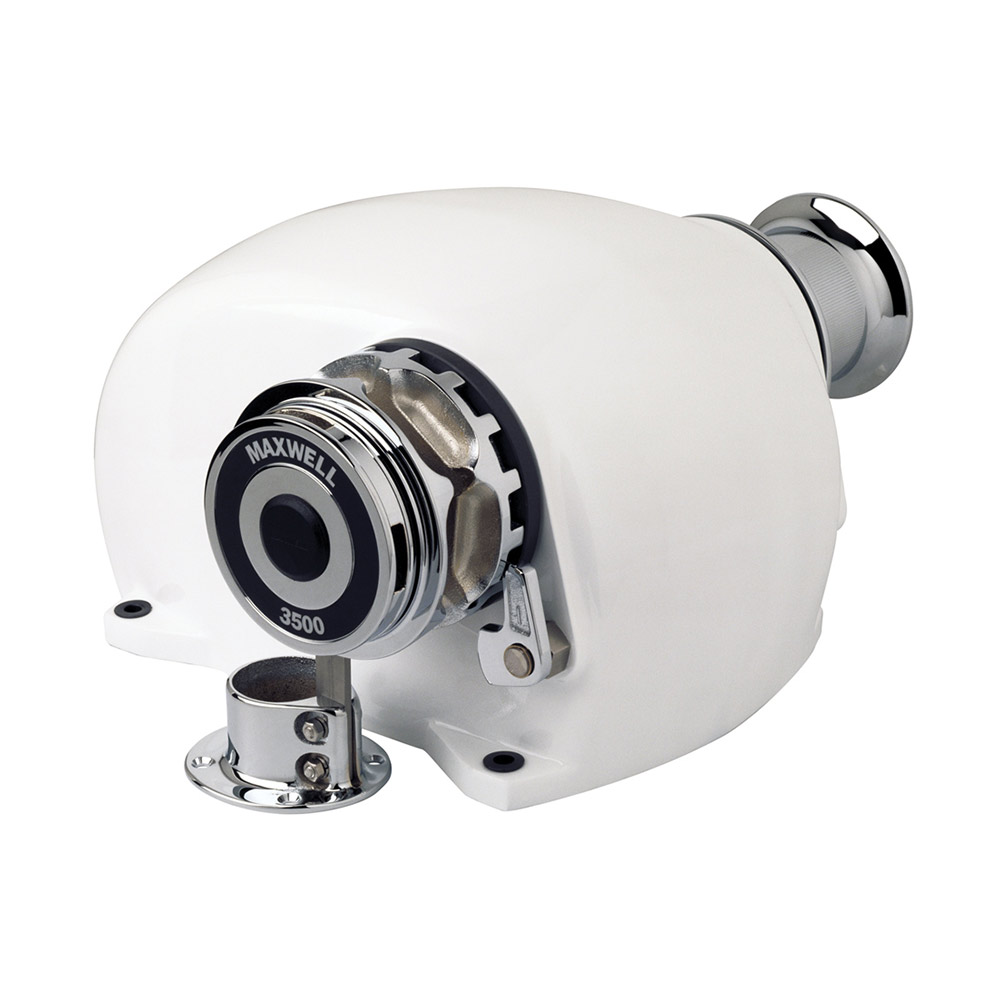

The Maxwell 3500 HWC Horizontal Windlass 24V 1200W DCW/SD(port) (Vetus P100260) is a 24 V DC horizontal marine windlass with a 1200 W motor and single drum with independent secondary drum (port) configuration. Designed for horizontal anchor handling with automatic chain operation and a secondary capstan for rope/chain or docking assistance, it supports standard 10–13 mm chain with robust performance for medium-sized vessels.
- Description
- Ask a Question
-
Maxwell 3500 HWC Horizontal Windlass 24V 1200W DCW/SD(port) (Vetus P100260)
Specification Details Model 3500 HWC DCW/SD(port) Article Number Vetus P100260 Power Supply 24 V DC Motor Power 1200 W Configuration Dual chainwheel with single drum and independent port secondary drum Chain Size Compatibility 10–13 mm (3/8″–1/2″) Maximum Pull Capacity Approx. 1590 kg (3500 lb) Line Speed (Normal Working) Approx. 15 m/min (50 ft/min)
Technical Features
- 24 V DC electric windlass with robust 1200 W motor for powerful anchor handling
- Horizontal deck-mounted windlass with automatic chain handling
- Dual chainwheel with independent port secondary drum for rope/chain retrieval or docking assistance
- Compatible with widely used marine anchor chain sizes (10–13 mm)
- Designed for smooth and efficient operation in medium-sized vessels
Applications
- Primary marine anchor handling on motor yachts and sailboats
- Horizontal windlass installation requiring both chain and secondary line handling
- Anchoring and mooring operations with secondary capstan assistance
-
