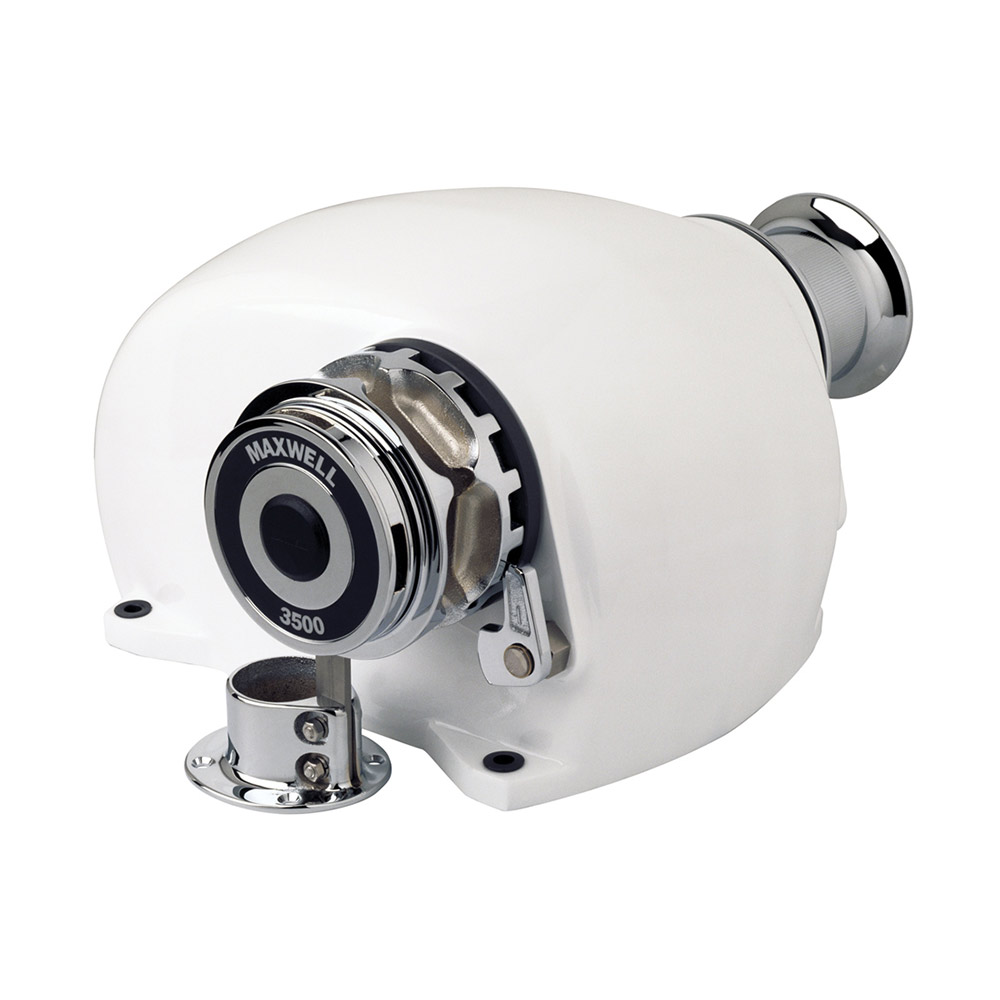

The Maxwell 3500 HWC Horizontal Windlass 24V 1200W DCW/DD (Vetus P100257) is a robust marine windlass designed for horizontal deck installation and dual chainwheel use. Operating on a 24 V DC system with a 1200 W motor, it delivers a maximum pull of approximately 1590 kg and handles standard 10–13 mm anchor chain, providing reliable anchor deployment and retrieval for larger vessels.
- Description
- Ask a Question
-
Maxwell 3500 HWC Horizontal Windlass 24V 1200W DCW/DD (Vetus P100257)
Specification Details Model 3500 HWC DCW/DD Article Number Vetus P100257 Power Supply 24 V DC Motor Power 1200 W Maximum Pull Capacity 1590 kg (3500 lb) Chain Size Compatibility 10–13 mm (3/8″–1/2″) Configuration Horizontal mount with dual chainwheel (DCW/DD) Line Speed (Normal Load) Approx. 15 m/min (50 ft/min)
Key Features
- Heavy-duty 24 V DC electric windlass with 1200 W motor designed for marine anchoring
- Dual chainwheel configuration for enhanced anchor handling and control
- Horizontal deck installation suitable for larger vessels and high-load conditions
- Compatible with standard marine anchor chain sizes (10–13 mm)
- Automatic chain feed for efficient anchor deployment and retrieval
Applications
- Primary anchor handling system on yachts, motorboats, and commercial vessels
- Horizontal windlass applications requiring high pulling capacity
- Marine anchoring solutions with dual chainwheel operation
-
