ID
1300747
$ 11,776.85
1-2 weeks delivery time
-
+
The Maxwell 3500 HWC Horizontal Windlass 12V 1200W DCW/SD(stbd) (Vetus P100262) is a compact yet robust marine anchoring system with a horizontal configuration, powered by a 12 V DC supply and a 1200 W motor. This single drum windlass features dual chainwheel with a starboard side secondary drum (stbd), suitable for handling standard 10–13 mm anchor chain on smaller to medium boats.
- Description
- Ask a Question
-

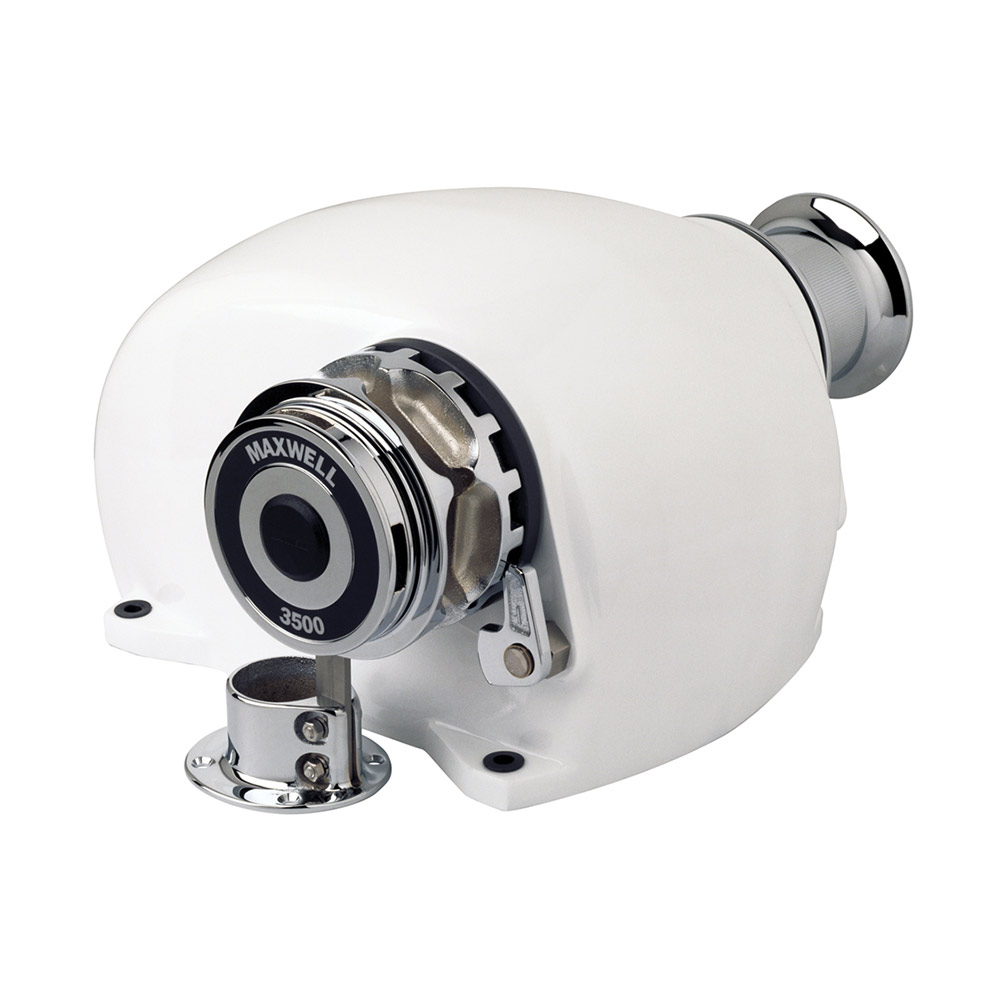

Maxwell 3500 HWC Horizontal Windlass 12V 1200W DCW/SD(stbd) (Vetus P100262)
Specification Details Model 3500 HWC DCW/SD(stbd) Article Number Vetus P100262 Power Supply 12 V DC Motor Power 1200 W Configuration Dual chainwheel with single drum and starboard secondary drum Chain Size Compatibility 10–13 mm (3/8″–1/2″) Maximum Pull Capacity Approx. 1590 kg (3500 lb) Line Speed (Normal Working) Approx. 15 m/min (50 ft/min)
Technical Features
- 12 V DC electric windlass with sturdy 1200 W motor for dependable performance
- Horizontal deck-mounted installation designed for ease of use
- Dual chainwheel with independent starboard secondary drum for rope/chain handling
- Compatible with standard marine anchor chain sizes (10–13 mm)
- Durable construction suited for yachts and small to medium vessels
Applications
- Main anchoring system on recreational and commercial boats
- Horizontal windlass installation with secondary drum support
- Marine chain and rope handling with reliable DC power
-
