ID
1300750
$ 11,511.49
1-2 weeks delivery time
-
+

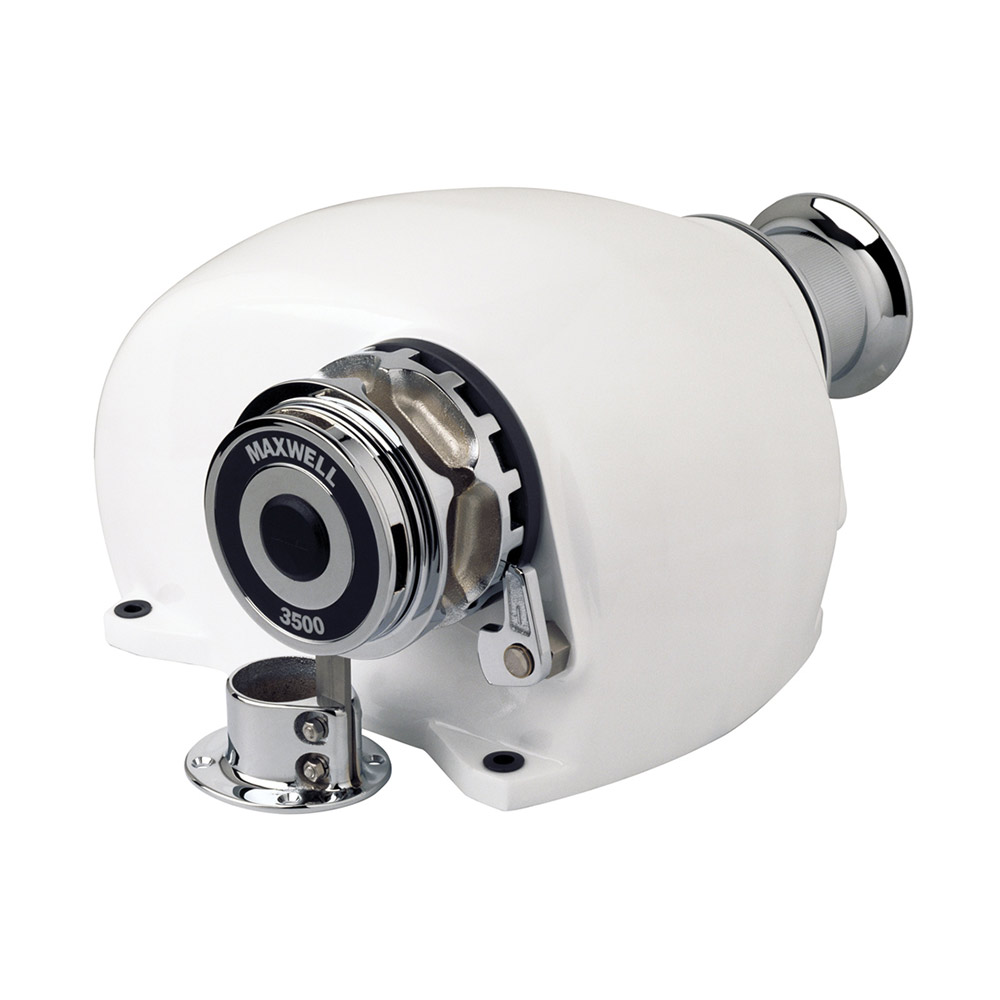

The Maxwell 3500 HWC Horizontal Windlass 12V 1200W DCW (Vetus P100265) is a robust horizontal marine windlass designed for automatic handling of chain-only anchor rode. Powered from a 12 V DC supply with a 1200 W motor, it delivers a maximum pull capacity of approximately 1590 kg and is compatible with 10–13 mm anchor chain, offering reliable anchoring performance for a wide range of vessels.
- Description
- Ask a Question
-
Maxwell 3500 HWC Horizontal Windlass 12V 1200W DCW (Vetus P100265)
Specification Details Model 3500 HWC DCW Article Number Vetus P100265 Power Supply 12 V DC Motor Power 1200 W Maximum Pull Capacity Approx. 1590 kg (3500 lb) Chain Size Compatibility 10–13 mm (3/8″–1/2″) Line Speed (Normal Working) Approx. 15 m/min (50 ft/min) Configuration Horizontal windlass with single dual-direction chainwheel Net Weight (DC Version) Approx. 94.5 kg (208 lb)*
Technical Features
- Heavy-duty horizontal deck-mounted windlass for marine anchor handling
- 12 V DC electric motor (1200 W) designed for reliable anchoring operations
- Dual-direction chainwheel (DCW) provides positive chain feed in both directions
- Compatible with standard marine anchor chain sizes (10–13 mm)
- Automatic chain rode handling with minimal deck intrusion
Applications
- Primary anchor handling on leisure and commercial vessels
- Horizontal windlass installation with automatic chain handling
- Marine anchoring requiring robust performance for heavy chain loads
-
