Italwinch EVO30 Windlass Chain Counter & Radio Control System 12/24V

ID 1380058

$ 527.80

1-2 weeks delivery time

Type:

Wired Chain Counter
Chain Counter + 868 MHz Receiver
Wireless Radio Transmitter

The Italwinch EVO30 Windlass Chain Counter & Radio Control System is a modular anchor chain monitoring solution designed for all Italwinch electric windlasses operating on 12V or 24V DC systems. The EVO30 range includes a standard wired chain counter, a wireless radio kit with an integrated 868 MHz receiver, and a wireless radio transmitter for existing EVO30 Radio installations. Featuring a compact 100 × 32 × 100 mm LCD display, accurate magnetic sensor-based chain measurement, and intuitive operation, the EVO30 system provides reliable anchor chain monitoring for recreational and commercial vessels while simplifying anchoring operations.

Description
Ask a Question

Italwinch EVO30 Windlass Chain Counter & Radio Control System 12/24V – Wired Display, Radio Kit & Wireless Remote

The Italwinch EVO30 is a professional electronic chain counter system developed for precise monitoring and control of electric anchor windlasses. Compatible with all Italwinch windlass models, the system operates on both 12V and 24V DC installations and provides accurate anchor chain length indication using a magnetic sensor.

The EVO30 family is available in three configurations: a standard wired chain counter (EV030), a wireless Radio Kit (EV030-Radio) including an integrated 868 MHz receiver, and a wireless radio transmitter (TXEV030-RADIO) for expanding an existing EVO30 Radio installation. The compact LCD display offers simple operation while improving anchoring precision and safety.

Key Features

Original Italwinch EVO30 electronic chain counter system
Compatible with all Italwinch electric windlasses
Suitable for both 12V and 24V DC electrical systems

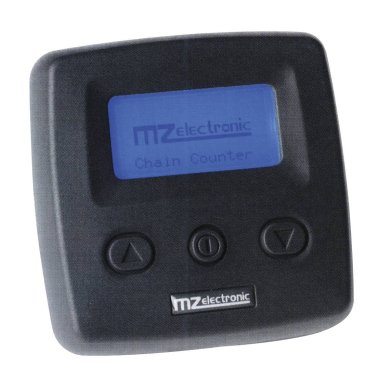

Compact LCD display measuring 100 × 32 × 100 mm
Accurate magnetic sensor-based chain length monitoring
Radio version operates on 868 MHz wireless frequency
Available as wired display, complete Radio Kit, or additional wireless transmitter
Simple front-panel operation with clear chain length indication
Designed for recreational and professional marine applications
Reliable construction for long-term marine use

Technical Specifications

Specification	Value
Product Type	Electronic Windlass Chain Counter System
Operating Voltage	12V / 24V DC
Display Dimensions	100 × 32 × 100 mm
Display Type	LCD
Chain Measurement	Magnetic Sensor Based
Wireless Frequency	868 MHz (Radio Versions)
Compatibility	All Italwinch Windlass Models
Application	Electric Anchor Windlasses
Manufacturer	Italwinch

Available Versions

Part Number	Italwinch Model	Description
601070	EV030	Standard wired chain counter with LCD display.
601072	EV030-Radio	Chain counter supplied with integrated 868 MHz wireless receiver.
284672	TXEV030-RADIO	Wireless radio transmitter for existing EVO30 Radio systems.

Applications

Electric anchor windlasses
Sailing yachts
Motor yachts
Commercial vessels
Replacement chain counter systems
New windlass control installations

Installation Notes: The EV030 (601070) is a complete wired chain counter designed for installation with a compatible magnetic chain sensor. The EV030-Radio (601072) adds an integrated 868 MHz wireless receiver for radio communication. The TXEV030-RADIO (284672) is an additional wireless transmitter intended for use with an existing EVO30 Radio installation and is not a standalone chain counter.

Note: Magnetic sensor and magnet are installation components and may be supplied separately depending on the selected configuration.
