ID
1380096
$ 66.09
1-2 weeks delivery time
Type:
- Down
- UP
- No logo
Color:
- Black plastic
- Stainless steel
- White plastic

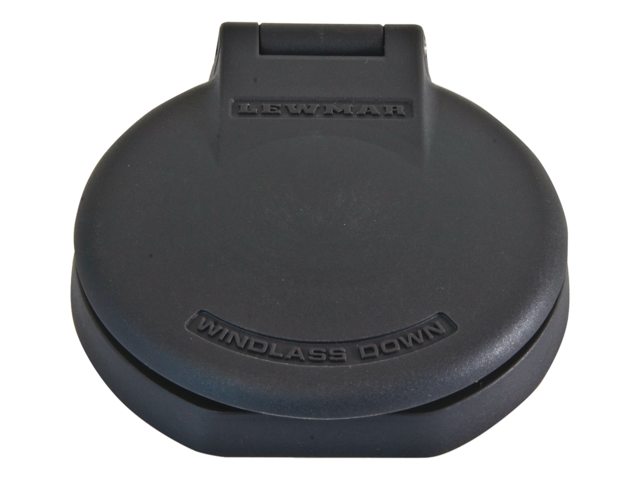

The Lewmar Windlass Foot Switch Ø78 mm is a heavy-duty deck-mounted control switch designed for safe and convenient operation of 12V and 24V DC anchor windlasses using a relay or control box. Available in multiple Up, Down and Blank versions with marine-grade AISI 316 stainless steel, grey composite or white composite covers, these waterproof deck switches provide reliable foot-operated control in demanding marine environments. The compact 78 mm design allows neat deck installation while maintaining excellent durability and corrosion resistance.
- Description
- Ask a Question
-
Lewmar Windlass Foot Switch Ø78 mm for 12V & 24V Anchor Windlasses – Up, Down & Blank Versions
The Lewmar Windlass Foot Switch is a robust deck-mounted control designed for convenient hands-free operation of electric anchor windlasses. Suitable for both 12 V and 24 V DC systems using a relay or control box, these switches provide dependable control during anchor deployment and retrieval while allowing the operator to keep both hands free for rope and chain handling.
Designed specifically for marine environments, the switches are available with marine-grade AISI 316 stainless steel, grey composite or white composite covers. Their low-profile construction minimizes deck obstruction while providing excellent resistance to corrosion, water exposure and everyday onboard use.
The range includes dedicated Up, Down, Blank and Open versions, allowing installers to configure complete windlass control systems that match the vessel's layout and operating requirements.
Key Features
- Deck-mounted foot switch for electric anchor windlasses.
- Compatible with 12 V and 24 V DC windlass systems.
- Designed for use with relay or control box installations.
- Available with AISI 316 stainless steel or composite covers.
- Grey, white and stainless steel finish options.
- Dedicated Up, Down, Blank and Open switch versions.
- Low-profile deck installation.
- Marine-grade corrosion-resistant construction.
- Suitable for new installations or replacement applications.
Available Versions
Function Cover Finish Manufacturer Part No. Down Grey Composite 68000883 Up Grey Composite 68000884 Blank Black/Grey Composite 68000928 Down AISI 316 Stainless Steel 68000888 Up AISI 316 Stainless Steel 68000889 Blank AISI 316 Stainless Steel 68000929 Blank White Composite 68000930 Open Grey Composite 68000970 Open White Composite 68000971
Technical Specifications
Specification Value Product Type Deck Foot Switch Application Electric Anchor Windlasses Operating Voltage 12 V / 24 V DC Control System Relay or Control Box Mounting Diameter 78 mm Overall Height 17 mm Body Diameter 78 mm Body Depth 44 mm Mounting Holes 3 × Ø6.6 mm on 62 mm PCD Available Cover Materials AISI 316 Stainless Steel, Grey Composite, White Composite Available Functions Up, Down, Blank and Open
Applications
- Lewmar anchor windlass control systems.
- Powerboats and sailing yachts.
- Deck-mounted anchor controls.
- Replacement or new windlass installations.
Note: These foot switches are designed for operation through a compatible relay or windlass control box and are available in multiple functional and finish variations to suit different installation requirements.
Documents
Lewmar Windlass Foot Switch Ø 78mm Size: 556 Kb -
