The Exalto EWT 223BDS 24V wiper motor with a 60° angle of view is engineered for single-drive bulkhead installation. Part of the MD1 series, it features pendulum wiping, self-parking, and speed interval with a 25 Nm torque, delivering reliable performance with long arms and blades up to 750 mm.
- Description
- Ask a Question
-

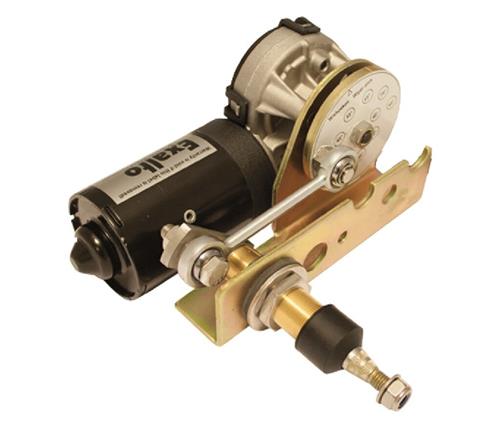

Exalto EWT Wiper 223BDS 24V 60° 25Nm Bulkhead 75mm Single
This Exalto EWT 223BDS 24V wiper motor with a 60° angle of view is engineered for single-drive bulkhead mounting with a wall thickness of 75 mm. Part of the MD1 series, it combines pendulum wiping, self-parking, and speed interval with a powerful 25 Nm torque.
Key Features
- Single-drive configuration
- 60° pendulum wiping angle
- Self-parking resting position
- Speed interval function
- MD1 series compatibility
Technical Data
Article Code XA2166.40S-60 Sales Unit 1 piece EAN Code 8720763541337 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type Pendulum MD1 Driven Axles 1 Angle Of View 60° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 132 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 241 mm Product Height 90 mm Wall Thickness 75 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.40S-60)
-
