ID
1345369
$ 458.87
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 24V wiper motor with a 65° angle of view offers increased wiping coverage in a single-drive bulkhead design with 75 mm wall thickness. It features pendulum operation, self-parking, and speed interval, delivering consistent 25 Nm torque and MD1 series compatibility.
- Description
- Ask a Question
-

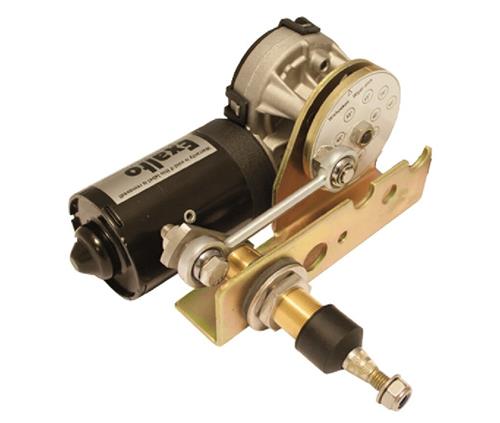

Exalto EWT Wiper 223BDS 24V 65° 25Nm Bulkhead 75mm Single
The Exalto EWT 223BDS 24V wiper motor with a 65° angle of view offers increased wiping coverage in a single-drive bulkhead design. Built for a 75 mm wall thickness, this MD1 series wiper includes pendulum operation, self-parking, and speed interval, delivering consistent 25 Nm torque.
Key Features
- 65° pendulum wiping angle
- Single-drive wiper motor
- Self-parking function
- Speed interval available
- Bulkhead mounting design
Technical Data
Article Code XA2166.40S-65 Sales Unit 1 piece EAN Code 8720763541344 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Pendulum Driven Axles 1 Angle Of View 65° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 132 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 241 mm Product Height 90 mm Wall Thickness 75 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.40S-65)
-
